COMPONENTS

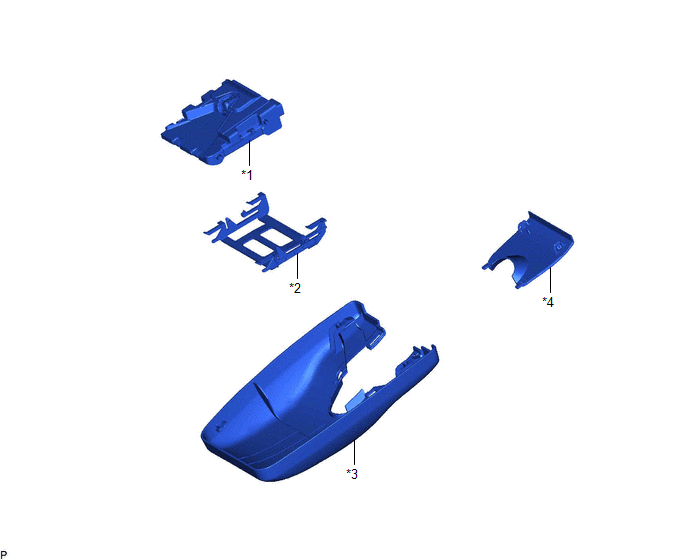

ILLUSTRATION

*1

FORWARD RECOGNITION CAMERA

*2

FORWARD RECOGNITION LATCH

*3

NO. 1 FORWARD RECOGNITION COVER

*4

NO. 2 FORWARD RECOGNITION COVER
