COMPONENTS

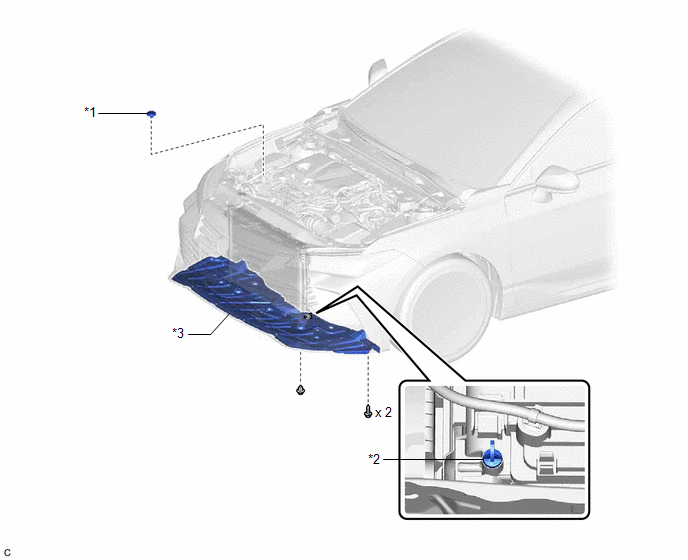

ILLUSTRATION

*1

RESERVE TANK CAP

*2

DRAIN COCK PLUG

*3

NO. 1 ENGINE UNDER COVER

-

-
