INSPECTION

PROCEDURE

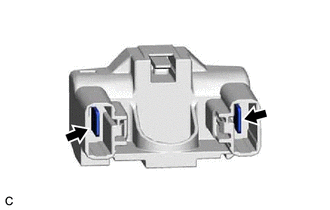

1. INSPECT HYBRID BATTERY TERMINAL BLOCK

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Hybrid Battery Terminal Block

Always

Below 1 Ω

If the result is not as specified, replace the hybrid battery terminal block.
