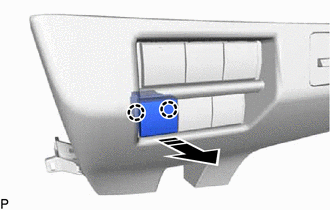

REMOVAL PROCEDURE 1. REMOVE FRONT DOOR SCUFF PLATE LH Click here 2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH Click here 3. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH Click here 4. REMOVE INSTRUMENT SIDE PANEL LH Click here 5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Click here 6. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY Click here 7. REMOVE NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY Click here 8. REMOVE LUGGAGE COMPARTMENT DOOR OPENING SWITCH ASSEMBLY (a) Disengage the 2 claws and remove the luggage compartment door opening switch assembly as shown in the illustration.
|
