OPERATION CHECK STORAGE CHECK NOTICE: When
replacing the radio and display receiver assembly, always replace it
with a new one. If a radio and display receiver assembly which was
installed to another vehicle is used, the following may occur:
- A communication malfunction DTC may be stored.
- The radio and display receiver assembly may not operate normally.
HINT:
- Check the storage with it installed to the radio and display receiver assembly.
- Illustrations may differ from the actual vehicle screen depending on the
device settings and options. Therefore, some detailed areas may not be
shown exactly the same as on the actual vehicle screen.
(a) Enter diagnostic mode. Click here

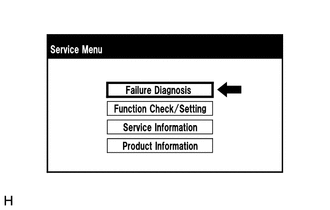

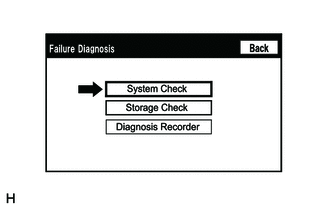

 (b) Select "Failure Diagnosis" from the "Service Menu" screen.

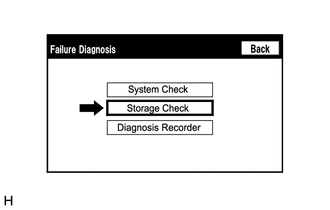

 (c) Select "Storage Check" from the "Failure Diagnosis" screen.

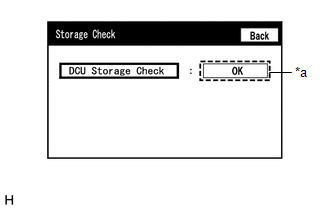

 (d) Storage Check
(1) Select "DCU Storage Check" to start the radio and display receiver assembly storage check.
(2) Check the result displayed when the radio and display receiver assembly storage check is complete. Screen Description |
Display (Result) | Description | |
Checking | Check is in progress | |
OK | Radio and display receiver assembly storage is normal | |
NG | Radio and display receiver assembly storage is malfunctioning |
HINT:
- After selecting "DCU Storage Check", it may take a while for the result to be displayed.
- If the cabin temperature is -20°C (-4°F) or lower, or 65°C (149°F) or
higher, the storage may not operate normally, and "NG" may be displayed.
Make sure to perform troubleshooting with the cabin at an appropriate
temperature.
- If "NG" is displayed even when the cabin temperature is appropriate,
replace the radio and display receiver assembly with a new one.
CHECK PANEL & STEERING SWITCH
HINT:
- The radio and display receiver assembly panel switches and steering switches are checked in the following procedure.
- Illustrations may differ from the actual vehicle screen depending on the
device settings and options. Therefore, some detailed areas may not be
shown exactly the same as on the actual vehicle screen.
(a) Enter diagnostic mode. Click here
(b) Select "Function Check/Setting" from the "Service Menu" screen.

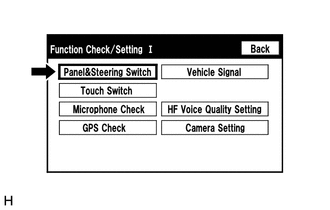

 (c) Select "Panel & Steering Switch" from the "Function Check/Setting I" screen.
 (d) Panel & Steering Switch Check Mode

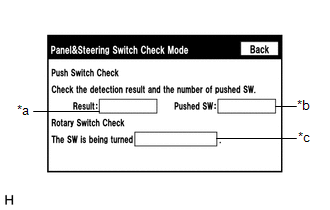

 Screen Description |
Display | Content | |
*a: Switch condition | "Pushed" is displayed when any switch is pushed. | |
*b: Number of switches pushed |
- Number of switches pushed at once is displayed.
- If 3 switches are pushed at once, "3" is displayed.
- If 4 or more switches are pushed at once, "More than 3" is displayed.
| | *c: Rotary switch direction |
Direction of rotary switch is displayed. |
(1) Operate each switch and check that the switch conditions are correctly displayed.
NOTICE: Do not push any switch for 3 seconds or more as doing so may cancel diagnostic mode.
CHECK TOUCH SWITCH
HINT:
- The touch switches on the screen are checked in the following procedure.
- Illustrations may differ from the actual vehicle screen depending on the
device settings and options. Therefore, some detailed areas may not be
shown exactly the same as on the actual vehicle screen.
(a) Enter diagnostic mode. Click here

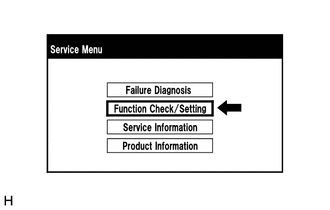

(b) Select "Function Check/Setting" from the "Service Menu" screen.

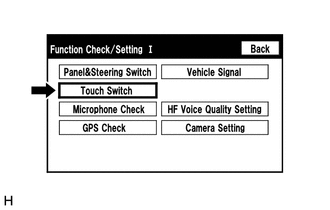

(c) Select "Touch Switch" from the "Function Check/Setting I" screen.
 (d) Touch Switch Check

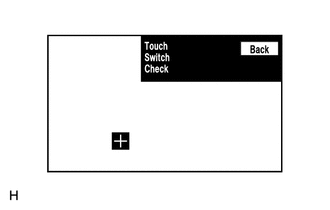

 (1) Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.
HINT:
- A "+" mark is displayed where the display is touched.
- The "+" mark remains on the display even after your finger is removed.
CHECK MICROPHONE
HINT:
- The microphone and microphone input level are checked in the following procedure.
- Illustrations may differ from the actual vehicle screen depending on the
device settings and options. Therefore, some detailed areas may not be
shown exactly the same as on the actual vehicle screen.
(a) Enter diagnostic mode. Click here
(b) Select "Function Check/Setting" from the "Service Menu" screen.

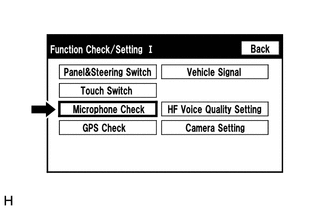

(c) Select "Microphone Check" from the "Function Check/Setting I" screen.

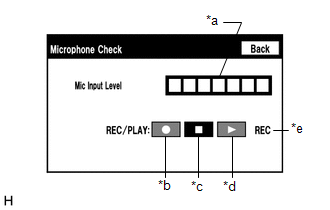

 (d) Microphone Check Screen Description |
Display | Content |
|
*: w/ Voice Recording Function
| | *a: Microphone input level meter |
Monitors the microphone input level every 0.1 seconds and displays the results in 8 different levels. | |
*b: Recording switch* | Starts recording. | |
*c: Stop switch* | Stops recording and playing. | |
*d: Play switch* | Plays the recorded voice. | |
*e: Recording indicator* |
Comes on while recording. |
 (1) When speaking into the microphone, check that the microphone input level meter changes according to the input level.
HINT: The microphone is active at all times when this screen is displayed.
(2) Push the recording switch and perform voice recording.
HINT:
- Select the recording switch with the blower motor of the air
conditioning system stopped. If an outlet of the air conditioning system
is facing the microphone, noise may be recorded.
- While recording or playing, switches other than the stop switch cannot be pushed.
- When no recording is present, the play switch cannot be pushed.
- Recording will stop after 5 seconds or when the stop switch is pushed.
(3) Check that the recording indicator remains on while recording and that the recording can be played normally.
CHECK GPS
HINT:
- GPS information is checked in the following procedure.
- Illustrations may differ from the actual vehicle screen depending on the
device settings and options. Therefore, some detailed areas may not be
shown exactly the same as on the actual vehicle screen.
(a) Enter diagnostic mode. Click here
(b) Select "Function Check/Setting" from the "Service Menu" screen.

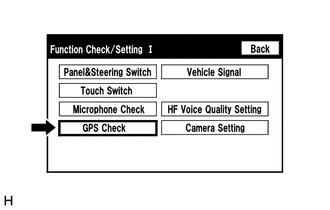

 (c) Select "GPS Check" from the "Function Check/Setting I" screen.

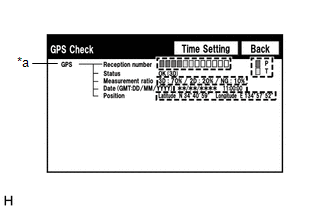

 (d) GPS Check *a: GPS |
Display | Content | |
Reception number | Displays reception condition of the satellites used to determine vehicle position. |
Blue: P (In use) | System is using GPS signal for location. | |
Yellow: T (Receiving) | System is tracking GPS signal for location. | |
No color: Not in use | System cannot receive GPS signal (searching for GPS signal). | |
Status | Displays reception status of the satellites used to determine vehicle position. |
OK (3D) | 3-dimensional location method is being used. | |
OK (2D) | 2-dimensional location method is being used. | |
NG | Location data cannot be used. | |
error | Reception error has occurred. | |
- | Any other state. | |
Measurement ratio | Displays the ratio of satellites performing measurements. |
3D | The ratio of satellites performing 3D positioning is displayed. | |
2D | The ratio of satellites performing 2D positioning is displayed. | |
NG | The ratio of satellites not performing measurement is displayed. | |
Date | Date/time information obtained from GPS signals is displayed in Greenwich Mean Time (GMT). | |
Position | Latitude and longitude information on current position is displayed. |
 (1) When the "GPS Check" screen is displayed, check the values of each display.
HINT: This screen is updated once per second. (e) GPS Time Setting (w/ GPS Time Setting Function)

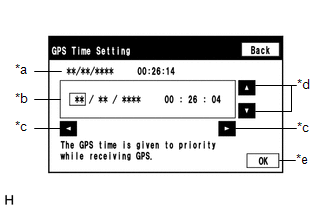

 Screen Description |
Display | Content | |
*a: Time display | Displays the date and time in the device. | |
*b: Date and time setting screen | Setting is possible only when GPS signals are not being received. | |
*c: Cursor movement switch | Moves the cursor on the date and time setting screen to the right and left. | |
*d: Adjustment switch | Adjusts values of items selected by the cursor. | |
*e: OK switch | Selecting
this switch after setting the date and time updates the date and time
in the device (only when GPS signals are not being received). |
(1) When GPS signals are not being received, the date and time in the device can be adjusted.
HINT: Time
setting is possible only when GPS signals are not being received. When
the audio and visual system is receiving GPS signals, priority is given
to displaying the time and date received via GPS. CHECK VEHICLE SIGNAL
HINT:
- Vehicle signals received by the radio and display receiver assembly are checked in the following procedure.
- Illustrations may differ from the actual vehicle screen depending on the
device settings and options. Therefore, some detailed areas may not be
shown exactly the same as on the actual vehicle screen.
(a) Enter diagnostic mode. Click here
(b) Select "Function Check/Setting" from the "Service Menu" screen.

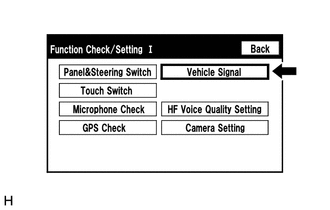

(c) Select "Vehicle Signal" from the "Function Check/Setting I" screen.

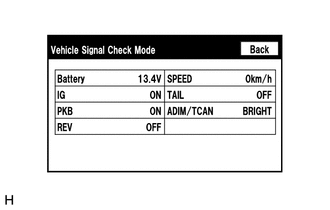

 (d) Vehicle Signal Check Mode
 Screen Description |
Display | Content | |
Battery | Auxiliary battery voltage is displayed. | |
IG | Power switch ON/OFF state is displayed. | |
PKB | Parking brake ON/OFF state is displayed. | |
REV | Reverse signal ON/OFF state is displayed. | |
SPEED | Vehicle speed is displayed in km/h. | |
TAIL | Tail signal (light control switch) ON/OFF state is displayed. | |
ADIM/TCAN | Brightness state DIM (with) / BRIGHT (without) is displayed. |
HINT:
- Only items for which signals have been received will be displayed.
- This screen displays vehicle signals input to the radio and display receiver assembly.
- This screen is updated once per second.
(1) When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.
NOTICE:
- These settings are adjusted separately for each registered cellular phone.
- If a cellular phone has not been registered, the settings cannot be adjusted.
CHECK HANDS-FREE VOICE QUALITY SETTING
HINT:
- The hands-free voice quality of a "Bluetooth" compatible phone can be adjusted using the following procedure.
- Illustrations may differ from the actual vehicle screen depending on the
device settings and options. Therefore, some detailed areas may not be
shown exactly the same as on the actual vehicle screen.
(a) Enter diagnostic mode. Click here
(b) Select "Function Check/Setting" from the "Service Menu" screen.

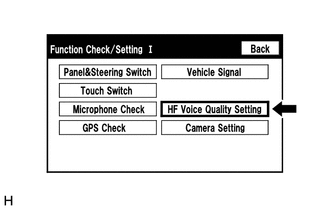

(c) Select "HF Voice Quality Setting" from the "Function Check/Setting I" screen.

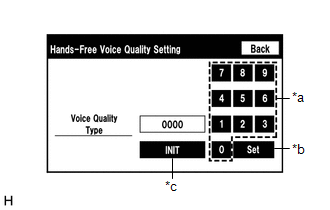

 (d) Hands-Free Voice Quality Setting
|
*a | Numeric Keypad | |
*b | Setting Button | |
*c | Reset Button |
(1) If necessary, refer to the table below to adjust the voice quality type with the numeric keypad.
(2) When adjusting the settings, use the numeric keypad on the screen to input the voice quality type according to the table. Settings |
Parameter | Target Phenomenon |
Voice Quality Type | Positive Effect of Changing Voice Quality |
Negative Effect of Changing Voice Quality | |
A (Noise) | The other party hears background noise when listening to your voice. |
1000 | The amount of background noise the other party hears when listening to your voice is reduced. |
The volume of voice the other party hears when listening to your voice may temporarily drop. | |
B (Noise) | The other party hears a lot of background noise when listening to your voice. |
2000 | The amount of background noise the other party hears when listening to your voice is sharply reduced. |
The volume of voice the other party hears when listening to your voice may temporarily drop. | |
C (Echo) | The other party hears weak echoes. |
0100 | The amount of echo is reduced (low level). |
Sound quality of the other party deteriorates (low level). | |
D (Echo) | The other party hears strong echoes. |
0200 | The amount of echo is reduced (high level). |
Sound quality of the other party deteriorates (high level). | Settings (When Multiple Phenomenon Occurred) |
Parameter | Target Phenomenon |
Voice Quality Type | Positive Effect of Changing Voice Quality |
Negative Effect of Changing Voice Quality | |
A+C | The other party hears background noise and weak echoes when listening to your voice. |
1100 |
- The amount of background noise the other party hears when listening to your voice is reduced.
- The amount of echo is reduced (low level).
|
- The volume of voice may drop temporarily.
- Sound quality of the other party deteriorates (low level).
| | A+D |
The other party hears background noise and strong echoes when listening to your voice. |
1200 |
- The amount of background noise the other party hears when listening to your voice is reduced.
- The amount of echo is reduced (high level).
|
- The volume of voice may drop temporarily.
- Sound quality of the other party deteriorates (high level).
| | B+C |
The other party hears a lot of background noise and weak echoes when listening to your voice. |
2100 |
- The amount of background noise the other party hears when listening to your voice is sharply reduced.
- The amount of echo is reduced (low level).
|
- The volume of voice may drop temporarily.
- Sound quality of the other party deteriorates (low level).
| | B+D |
The other party hears a lot of background noise and strong echoes when listening to your voice. |
2200 |
- The amount of background noise the other party hears when listening to your voice is sharply reduced.
- The amount of echo is reduced (high level).
|
- The volume of voice may drop temporarily.
- Sound quality of the other party deteriorates (high level).
|
HINT:
- The default value is "0000".
- Settings will be applied when the setting button is selected.
- If voice quality type values that are not in the table are input, the
setting will not be applied and a positive effect may not be gained.
- If the quality of phone calls decreases due to the changed settings, return the settings to "0000" by selecting "INIT".
CHECK SPEAKER
HINT:
- This function is used when checking the speaker wiring and whether the speakers are functioning properly.
- Illustrations may differ from the actual vehicle screen depending on the
device settings and options. Therefore, some detailed areas may not be
shown exactly the same as on the actual vehicle screen.
(a) Turn radio and display receiver assembly on and play any audio source.
HINT:
- This audio source will be used for the speaker check.
- The "SPCheck ON" button is grayed out and cannot be pressed when the audio source is off.
(b) Enter diagnostic mode. Click here
(c) Select "Failure Diagnosis" from the "Service Menu" screen.
 (d) Select "System Check" from the "Failure Diagnosis" screen.

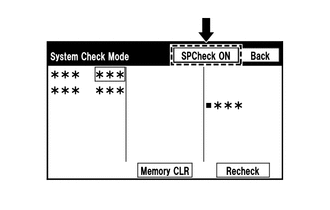

 (e) Select "SPCheck ON" from the "System Check Mode" screen.
 (f) Check the speaker wiring and check that the speakers are functioning properly.
HINT:
- Check that each speaker outputs sound from the selected audio source properly.
- "SPCheck OFF" is displayed during the speaker check.
- Sound can be heard from the speakers around the vehicle in order beginning from a speaker on the front side.
- More than one speaker may sound simultaneously depending on the speaker wiring.
- The sounding order during speaker check cannot be adjusted.
(g) Sound stops when any of the following conditions are met: (1) "SPCheck OFF" is selected.
(2) The power switch is turned off. (3) Diagnostic mode is turned off.
(4) The screen is changed to another screen. (5) Audio mode is turned off.
CHECK SOFTWARE ERROR HISTORY
HINT:
- This function is used to check error history when the radio and display receiver assembly screen is blacked out.
- The location of a malfunction cannot be determined using this function.
(a) Check Software Error History. (1) Connect the Techstream to the DLC3.
(2) Turn the power switch on (IG). (3) Turn the Techstream on. (4) Enter the following menus: Body Electrical / Navigation System / Utility / Software Error History. Body Electrical > Navigation System > Utility
|
Tester Display | | Software Error History |
(5) When an item is stored for Software Error History, record it before repairing the performing repairs. Software Error History Screen Description |
Error Description | Trigger |
Detail | | Software Reset |
Navi Microcomputer | Hexadecimal Number | |
Audio Microcomputer | | CAN Microcomputer | |
No Video Signal | Front Monitor | |
Rear Monitor | | MOST Cold Restart |
Always |
HINT:
- The trigger detects malfunctions and displays the location where the malfunction information was stored.
- Software Error History can store up to 5 history data items. If a new
software error occurs when 5 data items have already been stored, the
oldest data is cleared and the new data is stored.
- If an error that is unsupported by the Techstream occurs, a "-" is displayed for the display items.
(b) Clear software error history. (1) When DTCs are cleared using any of the following operations, Software Error History will be cleared as well.
Click here
- Cleared using the Techstream.
- Cleared using the system check mode screen.
- Cleared using the unit check mode screen.
HINT:
- This function is used to detect disconnection of the video devices.
- In order to inspect the RSE, a disc should be inserted into the radio and display receiver assembly.
CHECK VIDEO DEVICE CONNECTION CHECK (a) Check Video Device Connection Check.
(1) Connect the Techstream to the DLC3. (2) Turn the power switch on (IG).
(3) Turn the Techstream on. (4) Enter the following menus: Body Electrical / Navigation System / Utility / Video Device Connection Check. Body Electrical > Navigation System > Utility
|
Tester Display | | Video Device Connection Check |
(5) When an item is stored for Video Device Connection Check, record it before proceeding with troubleshooting.
HINT:
- DTCs are stored when errors are detected.
- Depending on the vehicle, some of the items will not be displayed on the "Error Detected Image Line (Type)" screen.
Video Device Connection Check Screen Description |
Error Detected Image Line (Type) |
Areas to be Checked | |
H/U - > Separate Display (GVIF) | Not available | |
H/U - > Full RSE (GVIF) |
Not available | |
RSE - > Seatback Display RH (GVIF) |
Not available | |
RSE - > Seatback Display LH (GVIF) |
Not available | |
Rear Camera - > H/U (NTSC) |
Not available | |
IPA/BGM/PVM ECU - > Separate Display (GVIF) |
Not available | |
IPA/BGM/PVM ECU - > H/U (NTSC) |
Not available | |
IPA/BGM/PVM ECU - > H/U (GVIF) |
Not available | (b) Clear video device connection check.
(1) When DTCs are cleared using any of the following operations, Video Device Connection Check will be cleared as well.
Click here
- Cleared using the Techstream.
- Cleared using the system check mode screen.
- Cleared using the unit check mode screen.
Valet Mode Cancel NOTICE: When
valet mode cannot be canceled, there is a possibility that the vehicle
is stolen. Therefore, it is necessary to thoroughly check ownership of
the vehicle. HINT: This function is used to cancel valet mode.
(a) Cancel valet mode. (1) Connect the Techstream to the DLC3. (2) Turn the power switch on (IG).
(3) Turn the Techstream on. (4) Enter the following menus: Body Electrical / Navigation System / Utility / Valet Mode Cancel. Body Electrical > Navigation System > Utility
|
Tester Display | | Valet Mode Cancel |
(5) Cancel valet mode. HINT: This
function is used to check the connection history when the connection
between the radio and display receiver assembly and a "Bluetooth" device

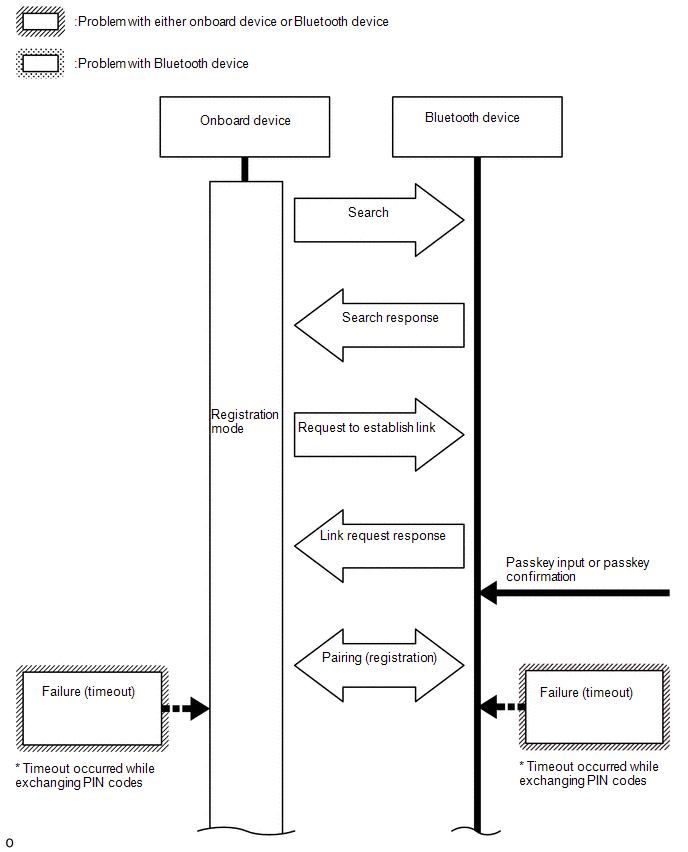

is unstable. CHECK "Bluetooth" CONNECTION HISTORY (a) Check "Bluetooth" Connection History.
HINT:
- "Bluetooth" Connection History displays data stored in the internal
memory of the ECU, such as the date a "Bluetooth" connection was
attempted and the state of a "Bluetooth" connection.
- By checking "Bluetooth" Connection History, the date, cause, etc. of a
"Bluetooth" device failing to register or connect can be analyzed.
- "Bluetooth" Connection History indicates the estimated cause of a
malfunction, but does not determine it. Therefore, checking "Bluetooth"
Connection History may not improve the problem.
- Performing an inspection using the Techstream before recording the "Bluetooth" Connection History may clear the history.
(1) Connect the USB memory device to the stereo jack adapter assembly.
(2) Enter diagnostic mode. Click here
(3) Select "Failure Diagnosis" from the "Service Menu" screen.
 (4) Select "Diagnosis Recorder" from the "Failure Diagnosis" screen.

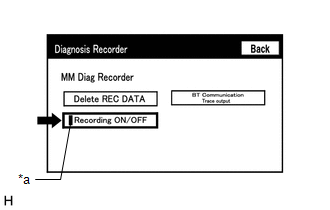

 (5) Push the "Recording ON/OFF" switch to enable "BT Communication Trace output" to be selected.
HINT: When
the green "Recording ON/OFF" indicator is illuminated, the "BT
Communication Trace output" is grayed out and cannot be selected.

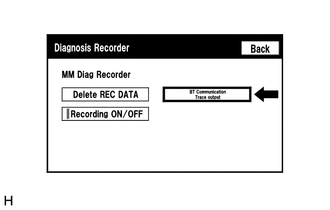

(6) Select "BT Communication Trace output" for 3 seconds.
 (7) According to the instructions on the screen, save the "Bluetooth" Connection History data to a USB memory device.
(8) Select "Recording ON/OFF" on the Diagnosis Recorder screen to illuminate the green "Recording ON/OFF" indicator.
HINT: Make sure that the green "Recording ON/OFF" indicator returns to illuminated state, after performing the above procedure.
(9) Connect the USB memory device with the saved "Bluetooth" Connection History data to the Techstream.
(10) Turn the Techstream on. (11) Enter the following menus: Advanced Function / Bluetooth Connection History.
(12) According to the Techstream screen, select the saved "Bluetooth" Connection History file.
(13) When an item is stored for "Bluetooth" Connection History, record it before proceeding with troubleshooting. "Bluetooth" Connection History Screen Description |
Item | Content | |
Occurrence Start Date/Time | Date and time of "Bluetooth" connection are displayed. | |
Occurrence End Date/Time | Date and time of "Bluetooth" disconnection are displayed. | |
History Type | Type of "Bluetooth" Connection History is displayed. | |
Result | "Bluetooth" connection result is displayed. | |
Contents | "Bluetooth" connection status is displayed. | |
"Bluetooth" Address | "Bluetooth" device address is displayed. | |
Continuance Time | The number of retries when "Bluetooth" connection was performed is displayed. | History Type: ACC ON |
Result | Contents |
Detail | Areas to be Checked | |
- | - |
Power switch on (ACC) |
- | History Type: Registration |
Result | Contents |
Detail | Areas to be Checked | |
Success (HFP) | No Error |
"Bluetooth" device was registered as a hands-free device properly. |
- | | Success (AVP) |
No Error | "Bluetooth" device was registered as a "Bluetooth" audio device properly. |
- | | Failure |
Time Out | "Bluetooth" connection could not be established properly. |
- Check that the "Bluetooth" device is in the cabin.
- Check that the "Bluetooth" device is not connected to another device using the "Bluetooth" connection.
- Restart the "Bluetooth" device and operate it again.
| | Authentication Error |
Wrong PIN code was input for PIN code verification. |
Perform "Bluetooth" device registration again. (Input PIN code correctly.) | |
Confirmation button was not selected even though a passkey was displayed. |
Perform "Bluetooth" device registration again. (When a passkey is displayed, select the confirmation button.) | |
A verification error occurred between the radio and display receiver assembly and "Bluetooth" device. |
Restart the radio and display receiver assembly and "Bluetooth" device, and operate them again. | |
ACL Link Disconnection | "Bluetooth" connection was disconnected by operating the "Bluetooth" device. |
Perform "Bluetooth" device registration again. | |
"Bluetooth" connection could not be established due to wave interference around the vehicle. |
Check for wave interference and perform "Bluetooth" device registration again. | |
"Bluetooth" device was outside the communication area. |
Bring the "Bluetooth" device near the radio and display receiver assembly and perform "Bluetooth" device registration again. | |
"Bluetooth" setting on the "Bluetooth" device was off. |
Change the "Bluetooth" setting to on and perform "Bluetooth" device registration again. | |
"Bluetooth" device was off. |
Turn the "Bluetooth" device on and perform "Bluetooth" device registration again. | |
A malfunction of the "Bluetooth" device occurred. |
Restart the "Bluetooth" device and operate it again. | |
Memory Write Failure | "Bluetooth" device information could not be stored in the radio and display receiver assembly. |
Perform "Bluetooth" device registration again. | |
Other Error | An error other than above occurred. |
After turning the power switch off and back to on (IG) again, perform "Bluetooth" device registration again. | |
Cancel | No Error |
Registration was suspended by operating the radio and display receiver assembly or "Bluetooth" device. |

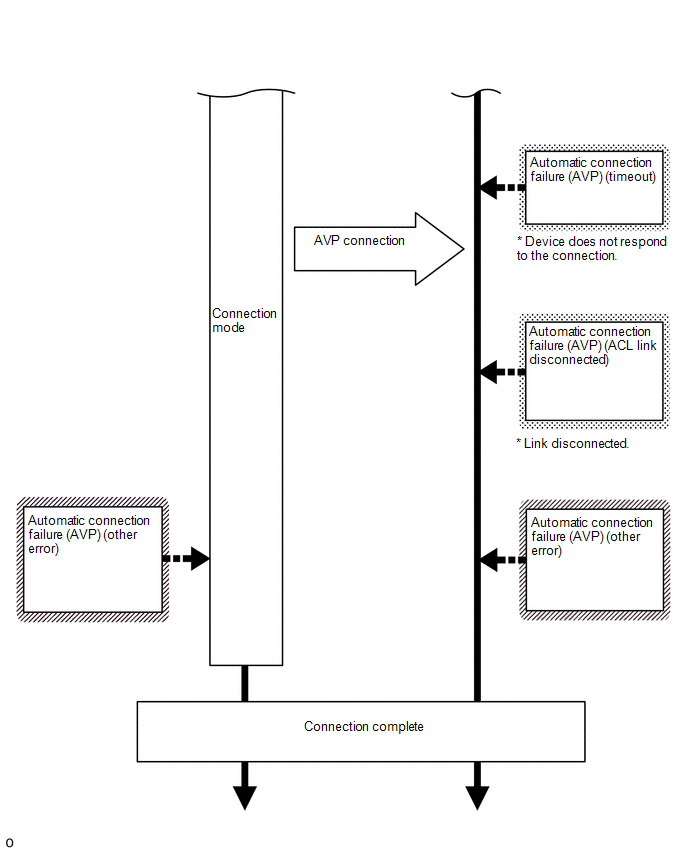

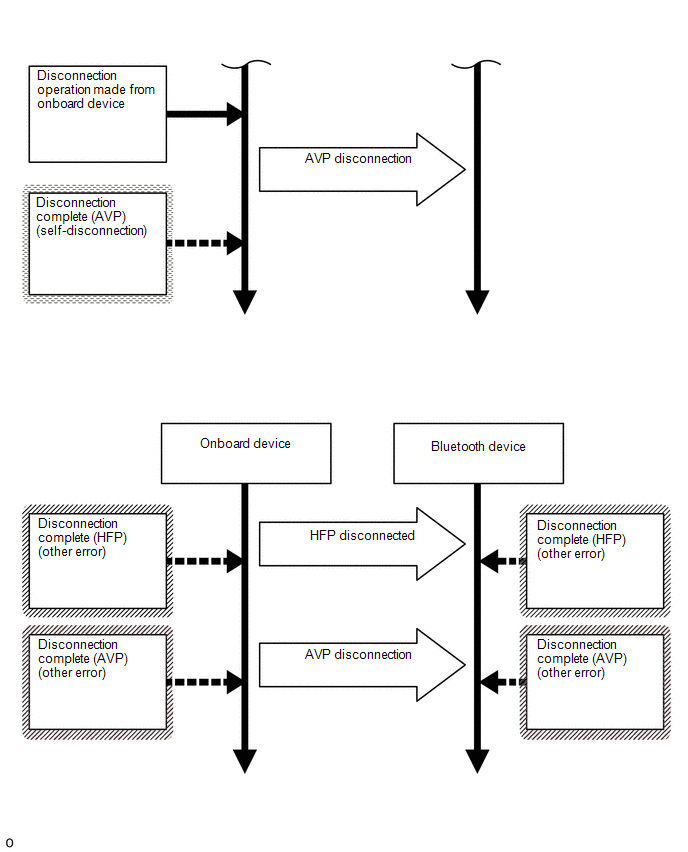

- | History Type: Connection |
Result | Contents |
Detail | Areas to be Checked |

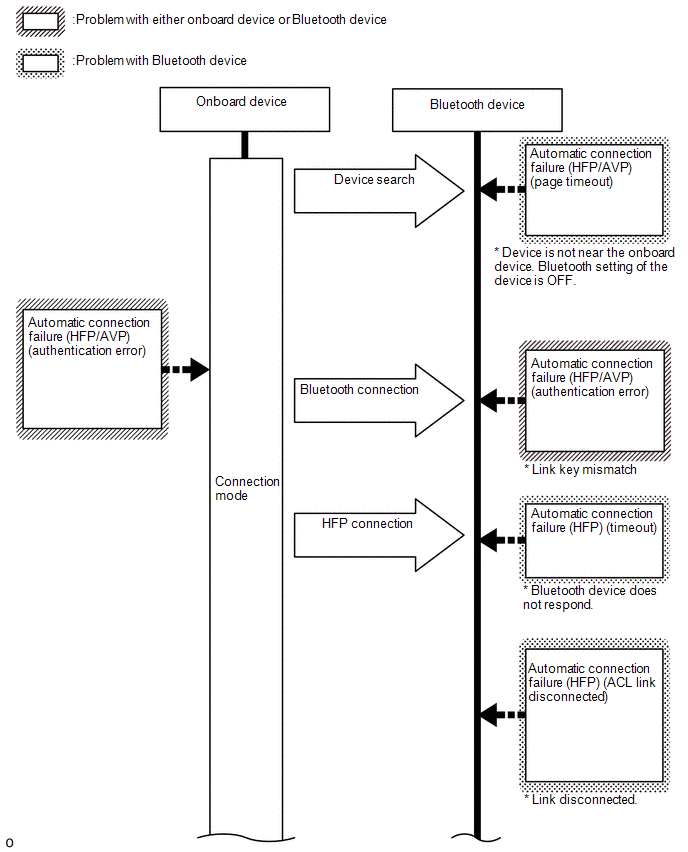

- Auto Connect Success (HFP)
- Manual Connect Success (HFP)
| No Error |
"Bluetooth" device was connected as a hands-free device properly. |
- |
- Auto Connect Failure (HFP)
- Manual Connect Failure (HFP)
| Time Out |
"Bluetooth" connection could not be established properly. |
- Check that the "Bluetooth" device is in the cabin.
- Check that the "Bluetooth" device is not connected to another device using the "Bluetooth" connection.
- Restart the "Bluetooth" device and operate it again.
| | Authentication Error |
Verification of authentication key between the radio and display receiver assembly and "Bluetooth" device failed. |
If "Bluetooth" connection fails multiple times, perform registration again. | |
A verification error occurred between the radio and display receiver assembly and "Bluetooth" device. |
Restart the radio and display receiver assembly and "Bluetooth" device, and operate them again. | |
Page Time Out | Could not find a "Bluetooth" device near the radio and display receiver assembly. |
Bring the "Bluetooth" device near the radio and display receiver assembly and perform "Bluetooth" connection again. | |
"Bluetooth" connection could not be established due to wave interference around the vehicle. |
Check for wave interference and perform "Bluetooth" connection again. | |
"Bluetooth" device was outside the communication area. |
Bring the "Bluetooth" device near the radio and display receiver assembly and perform "Bluetooth" connection again. | |
"Bluetooth" setting on the "Bluetooth" device was off. |
Change the "Bluetooth" setting to on and perform "Bluetooth" connection again. | |
"Bluetooth" device was off. |
Turn the "Bluetooth" device on and perform "Bluetooth" connection again. | |
A malfunction of the "Bluetooth" device occurred. |
Restart the "Bluetooth" device and operate it again. | History Type: Connection |
Result | Contents |
Detail | Areas to be Checked |
- Auto Connect Failure (HFP)
- Manual Connect Failure (HFP)
| ACL Link Disconnection |
"Bluetooth" connection was disconnected by operating the "Bluetooth" device. |
Perform "Bluetooth" connection again. | |
"Bluetooth" connection could not be established due to wave interference around the vehicle. |
Check for wave interference and perform "Bluetooth" connection again. | |
"Bluetooth" device was outside the communication area. |
Bring the "Bluetooth" device near the radio and display receiver assembly and perform "Bluetooth" connection again. | |
"Bluetooth" setting on the "Bluetooth" device was off. |
Change the "Bluetooth" setting to on and perform "Bluetooth" connection again. | |
"Bluetooth" device was off. |
Turn the "Bluetooth" device on and perform "Bluetooth" connection again. | |
A malfunction of the "Bluetooth" device occurred. |
Restart the "Bluetooth" device and operate it again. | |
SDP Error | HFP was disabled on the "Bluetooth" device. |
Enable HFP on the "Bluetooth" device and perform "Bluetooth" connection again. | |
"Bluetooth" device which operation had not been confirmed was used. |
Check that the "Bluetooth" device is hands-free compatible and its operation has been confirmed.
Click here | |
Other Error | An error other than above occurred. |
After turning the power switch off and back to on (IG) again, perform "Bluetooth" device registration again. | |
Manual Connect Cancel (HFP) | No Error |
Connection was interrupted by operating the radio and display receiver assembly or "Bluetooth" device. |
- | History Type: Connection |
Result | Contents |
Detail | Areas to be Checked |
- Auto Connect Success (AVP)
- Manual Connect Success (AVP)
| No Error |
"Bluetooth" device was connected as a "Bluetooth" audio device properly. |
- |
- Auto Connect Failure (AVP)
- Manual Connect Failure (AVP)
| Time Out |
"Bluetooth" connection could not be established properly. |
- Check that the "Bluetooth" device is in the cabin.
- Check that the "Bluetooth" device is not connected to another device using the "Bluetooth" connection.
- Restart the "Bluetooth" device and operate it again.
| | Authentication Error |
Verification of authentication key between the radio and display receiver assembly and "Bluetooth" device failed. |
If "Bluetooth" connection fails multiple times, perform registration again. | |
A verification error occurred between the radio and display receiver assembly and "Bluetooth" device. |
Restart the radio and display receiver assembly and "Bluetooth" device, and operate them again. | |
Page Time Out | Could not find a "Bluetooth" device near the radio and display receiver assembly. |
Bring the "Bluetooth" device near the radio and display receiver assembly and perform "Bluetooth" connection again. | |
"Bluetooth" connection could not be established due to wave interference around the vehicle. |
Check for wave interference and perform "Bluetooth" connection again. | |
"Bluetooth" device was outside the communication area. |
Bring the "Bluetooth" device near the radio and display receiver assembly and perform "Bluetooth" connection again. | |
"Bluetooth" setting on the "Bluetooth" device was off. |
Change the "Bluetooth" setting to on and perform "Bluetooth" connection again. | |
"Bluetooth" device was off. |
Turn the "Bluetooth" device on and perform "Bluetooth" connection again. | |
A malfunction of the "Bluetooth" device occurred. |
Restart the "Bluetooth" device and operate it again. | History Type: Connection |
Result | Contents |
Detail | Areas to be Checked |
- Auto Connect Failure (AVP)
- Manual Connect Failure (AVP)
| ACL Link Disconnection |
"Bluetooth" connection was disconnected by operating the "Bluetooth" device. |
Perform "Bluetooth" connection again. | |
"Bluetooth" connection could not be established due to wave interference around the vehicle. |
Check for wave interference and perform "Bluetooth" connection again. | |
"Bluetooth" device was outside the communication area. |
Bring the "Bluetooth" device near the radio and display receiver assembly and perform "Bluetooth" connection again. | |
"Bluetooth" setting on the "Bluetooth" device was off. |
Change the "Bluetooth" setting to on and perform "Bluetooth" connection again. | |
"Bluetooth" device was off. |
Turn the "Bluetooth" device on and perform "Bluetooth" connection again. | |
A malfunction of the "Bluetooth" device occurred. |
Restart the "Bluetooth" device and operate it again. | |
SDP Error | AVP was disabled on the "Bluetooth" device. |
Enable AVP on the "Bluetooth" device and perform "Bluetooth" connection again. | |
"Bluetooth" device which operation had not been confirmed was used. |
Check that the "Bluetooth" device is "Bluetooth" audio compatible and its operation has been confirmed.
Click here | |
Other Error | An error other than above occurred. |
After turning the power switch off and back to on (IG) again, perform "Bluetooth" device registration again. | |
Manual Connect Cancel (AVP) | No Error |
Connection was interrupted by operating the radio and display receiver assembly or "Bluetooth" device. |
- | History Type: Disconnection |
Result | Contents |
Detail | Areas to be Checked | |
Disconnection Complete (HFP) |
Link Loss | The "Bluetooth" device was moved outside of the communication area. |
Move the "Bluetooth" device into the communication area. | |
"Bluetooth" connection was disconnected due to wave interference around the vehicle. |
Check for wave interference and perform "Bluetooth" connection again. | |
A malfunction of the "Bluetooth" device occurred. |
Restart the "Bluetooth" device and operate it again. | |
Disconnection from Partner | "Bluetooth" connection was disconnected by operating the "Bluetooth" device. |
- | | Disconnection from Self |
"Bluetooth" connection was disconnected by operating the radio and display receiver assembly. |
- | | Other Error |
An error other than above occurred. |
After turning the power switch off and back to on (IG) again, perform "Bluetooth" device registration again. | |
Disconnection Complete (AVP) |
Link Loss | The "Bluetooth" device was moved outside of the communication area. |
Move the "Bluetooth" device into the communication area. | |
"Bluetooth" connection was disconnected due to wave interference around the vehicle. |
Check for wave interference and perform "Bluetooth" connection again. | |
A malfunction of the "Bluetooth" device occurred. |
Restart the "Bluetooth" device and operate it again. | |
Disconnection from Partner | "Bluetooth" connection was disconnected by operating the "Bluetooth" device. |
- | | Disconnection from Self |
"Bluetooth" connection was disconnected by operating the radio and display receiver assembly. |
- | | Other Error |
An error other than above occurred. |
After turning the power switch off and back to on (IG) again, perform "Bluetooth" device registration again. | History Type: Send |
Result | Contents |
Detail | Areas to be Checked | |
Success | No Error |
Call was made properly. |
- | | Failure |
Out of Service | Outside the cellular phone service area. |
Move
the vehicle into a cellular phone service area, check that the
"Bluetooth" device is connected to the vehicle and operate the device
again. | | Redial Regulation |
Redial of the "Bluetooth" device was restricted and could not make a hands-free call. |
Restart the "Bluetooth" device and operate it again. | |
Other Error | Could not make a hands-free call due to a "Bluetooth" device malfunction. |
Restart the "Bluetooth" device and operate it again. | |
Could not make a hands-free call due to a radio and display receiver assembly malfunction. |
After turning the power switch off and back to on (IG) again, perform "Bluetooth" device registration again. | |
Could
not make a hands-free call from the radio and display receiver assembly
because the call status of the "Bluetooth" device was not transmitted
to the radio and display receiver assembly. | Restart the "Bluetooth" device and operate it again. |
HINT: The names of items in the Result and Contents columns of the table may differ from the actual item displayed on the Techstream.

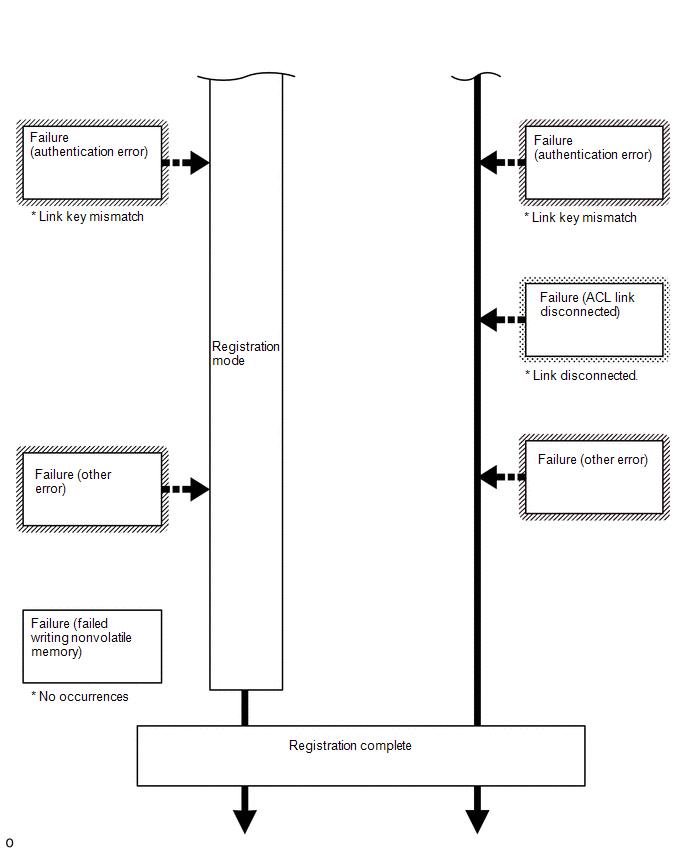

Bluetooth Connection Sequence (Registration from onboard device)
 Bluetooth Connection Sequence (Connection from onboard device after registration)

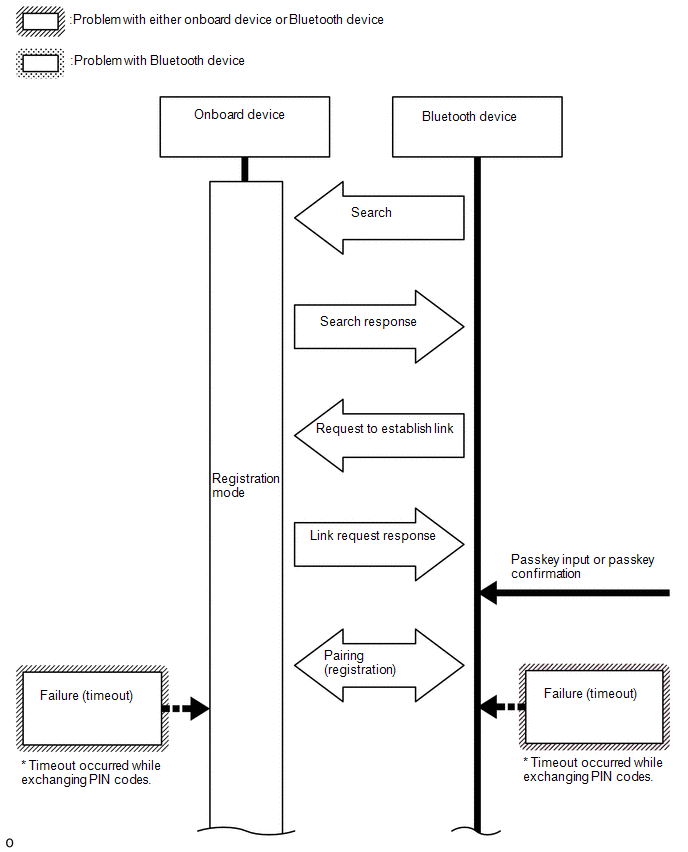

 Bluetooth Connection Sequence (Registration from Bluetooth device)
 Bluetooth Connection Sequence (Connection from Bluetooth device after registration)

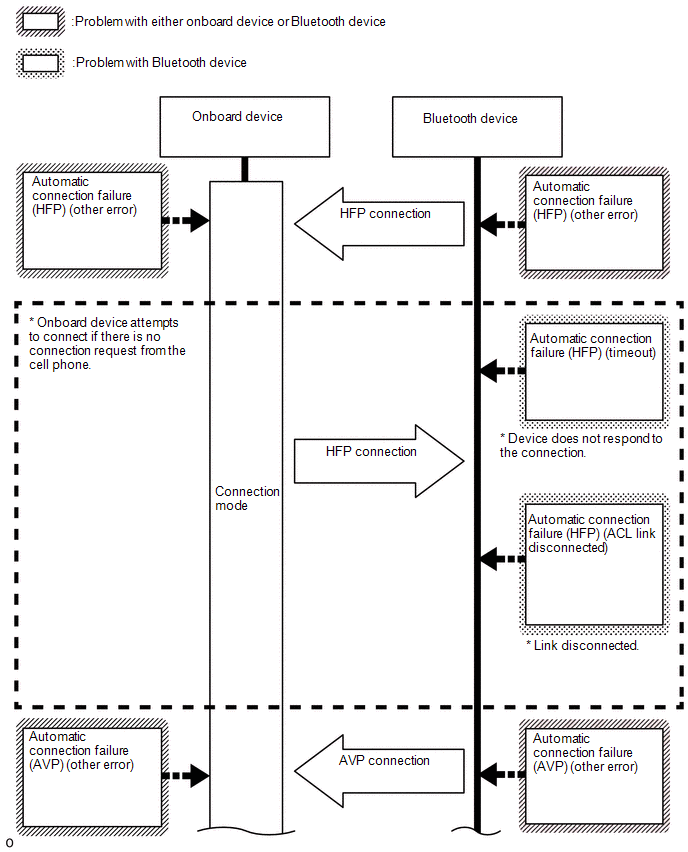

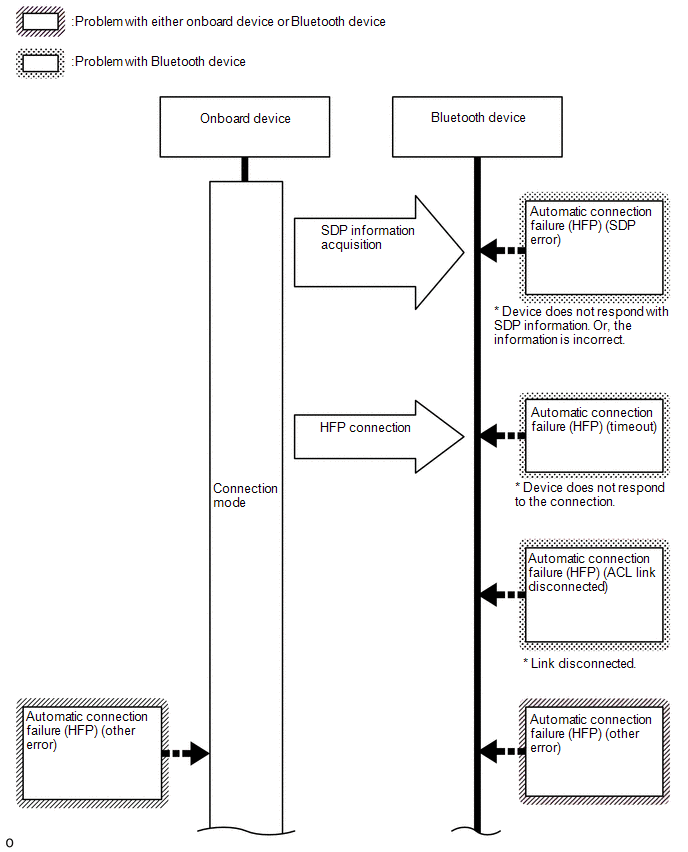

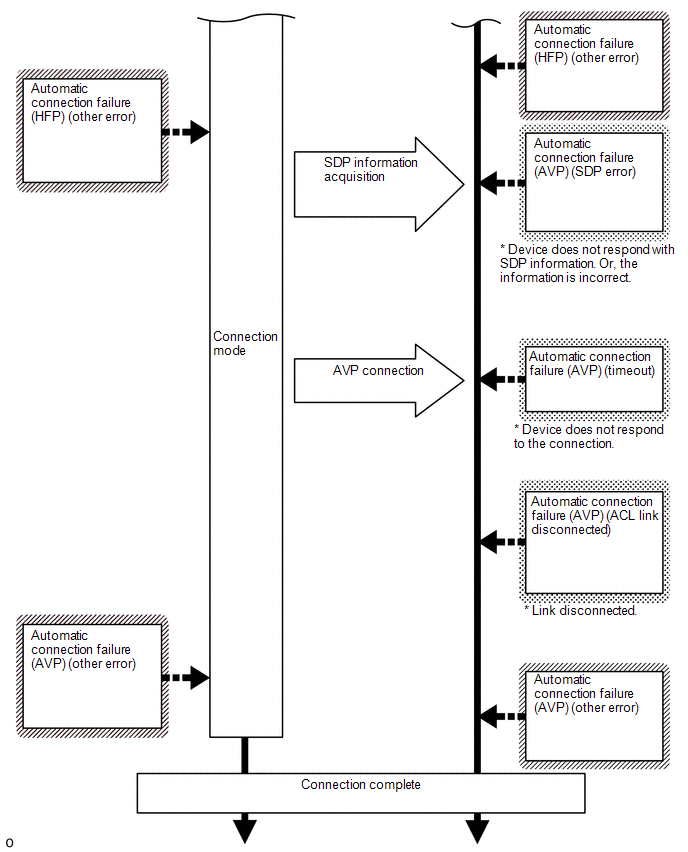

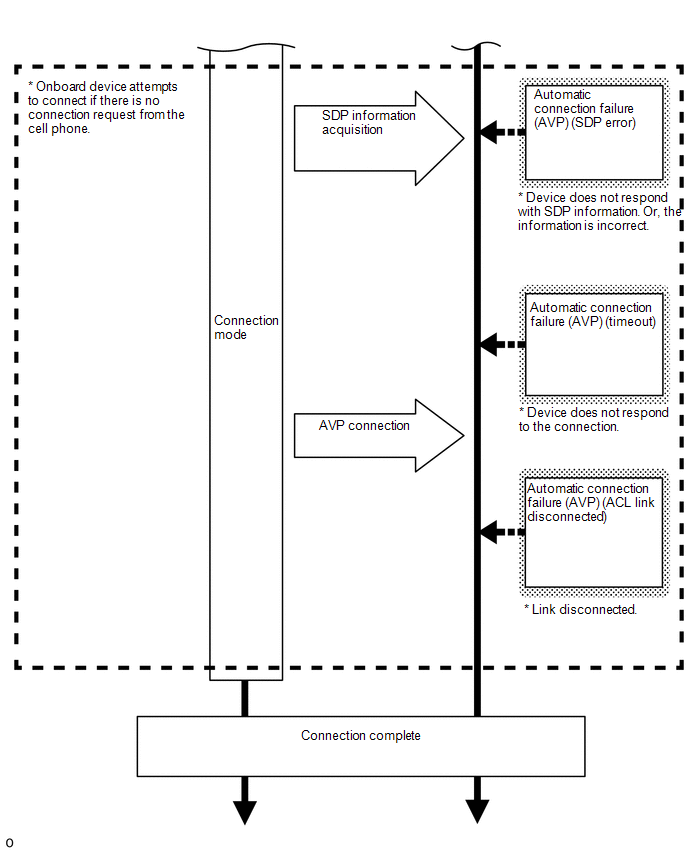

 Bluetooth Connection Sequence (Automatic Connection)

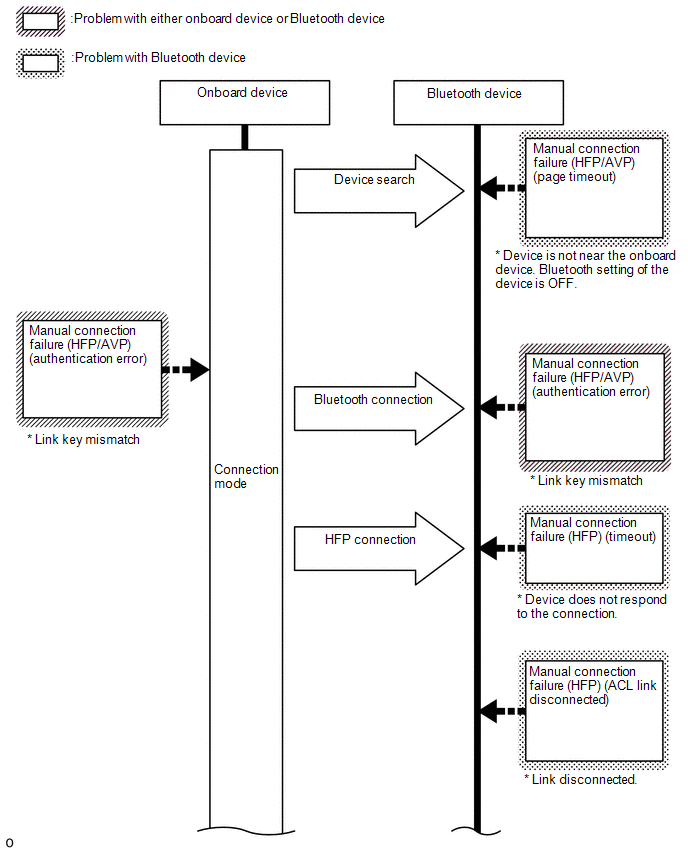

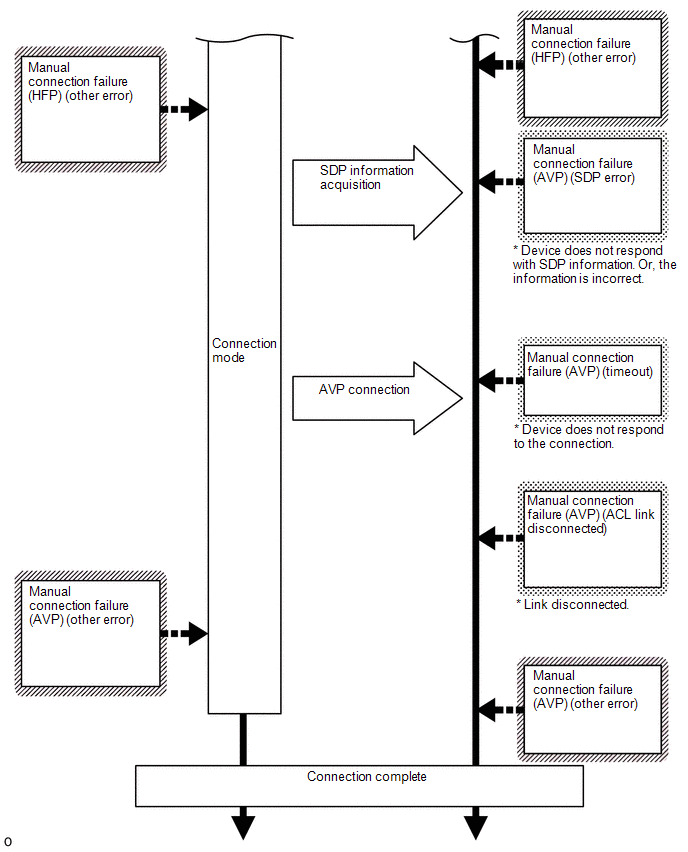

 Bluetooth Connection Sequence (Manual Connection)

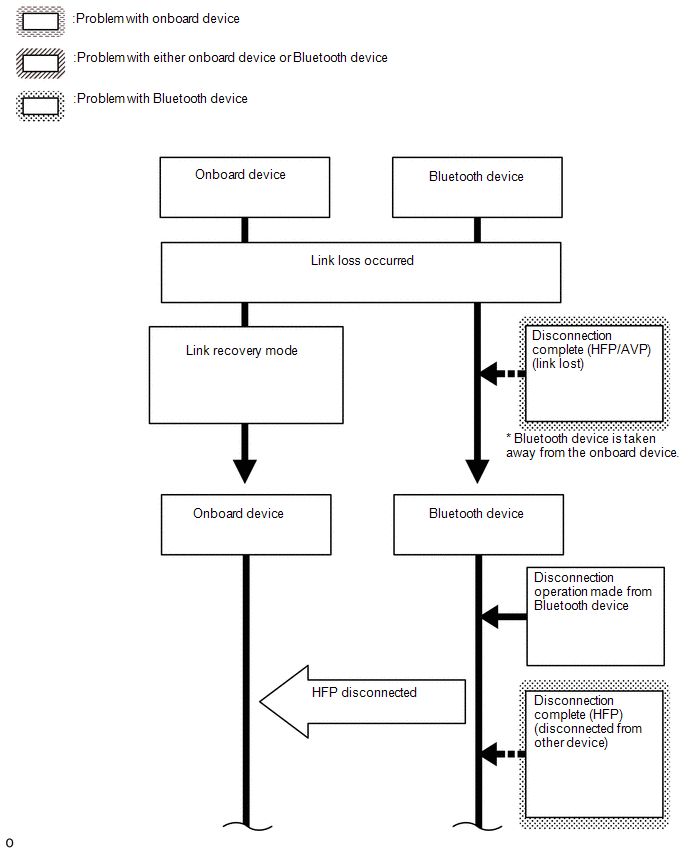

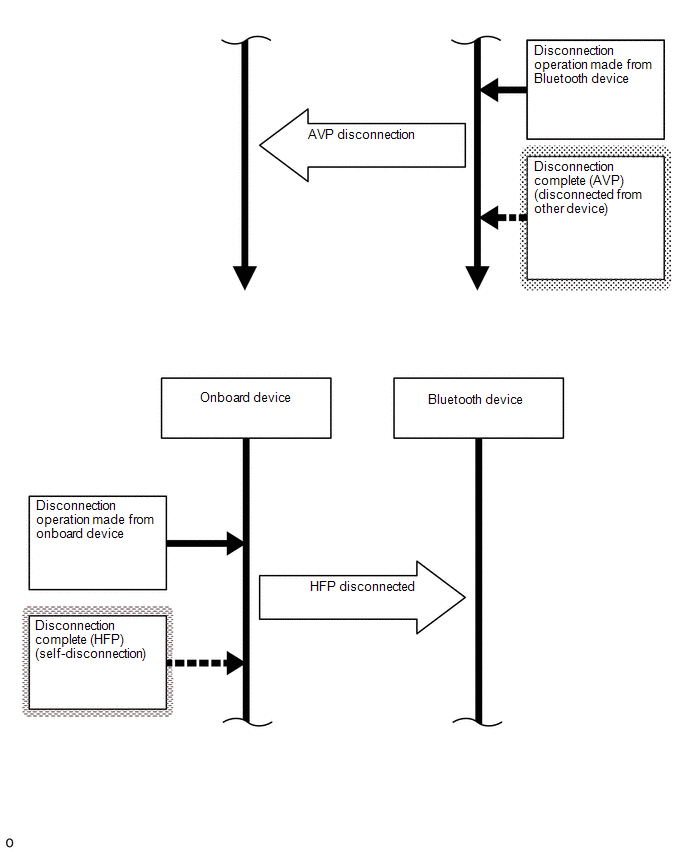

 Bluetooth Connection Sequence (Disconnection Processing)

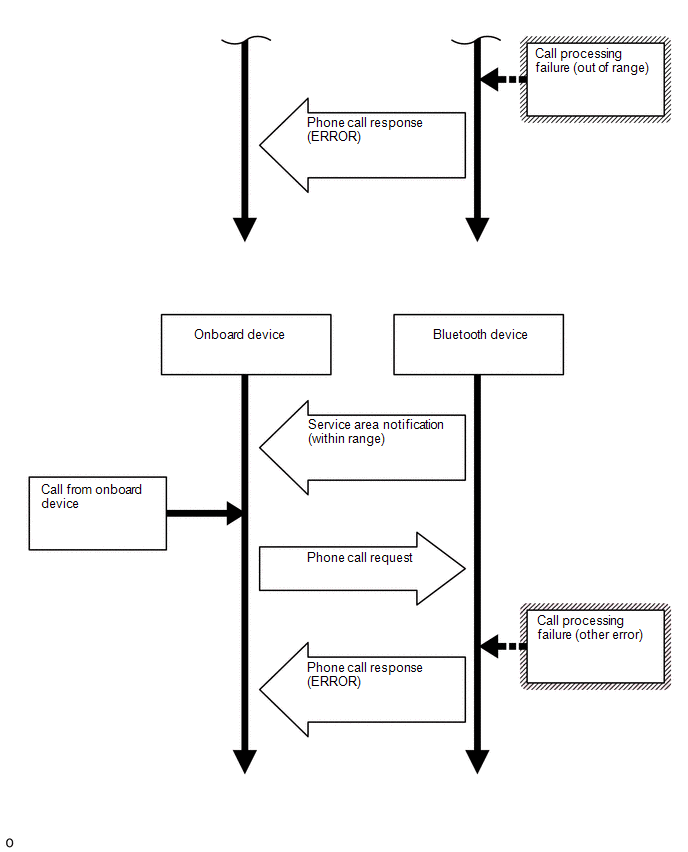

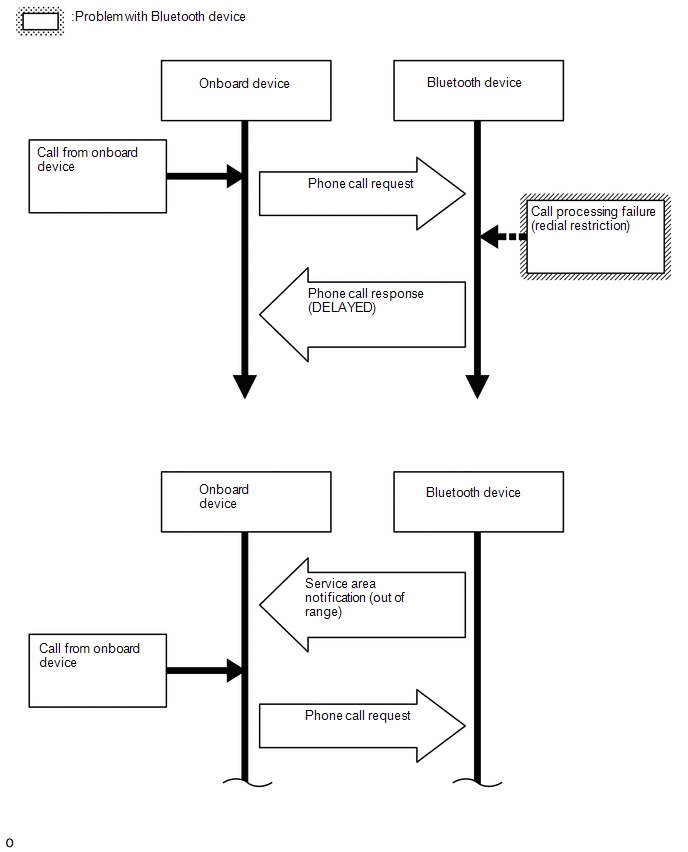

 Bluetooth Connection Sequence (Phone Call Processing)
 HINT: Bluetooth Related Terms: |
Marking in Repair Manual |
Description | | HFP |
(Hands Free Profile) | Profile for making and receiving telephone calls. | |
AVP | (Audio/Video Profile) |
Profile for music playback, information display and operation. | |
ACL | (Asynchronous Connection Less) |
One of the Bluetooth connection methods used for data transfer. | |
SDP | (Service Discovery Protocol) |
Protocol used to determine what kind of service is supported by the connected device. | |
