REMOVAL CAUTION / NOTICE / HINT
The
necessary procedures (adjustment, calibration, initialization, or
registration) that must be performed after parts are removed and
installed, or replaced during front door window frame moulding
removal/installation are shown below. Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model) |
Replaced Part or Performed Procedure |
Necessary Procedure | Effect/Inoperative Function When Necessary Procedures are not Performed |
Link | |
*: When performing learning using the Techstream.
Click here  | |
Disconnect cable from negative battery terminal |
Perform steering sensor zero point calibration |
Lane Departure Alert System (w/ Steering Control) |
| |
Pre-collision System | |
Intelligent Clearance Sonar System* | |
Lighting System (for Gasoline Model with Cornering Light) | |
Memorize steering angle neutral point |
Parking Assist Monitor System |
| |
Panoramic View Monitor System |
|
- Front door glass sub-assembly
- Front door glass run
| Initialize power window control system |
- Auto up and down function
- Jam protection function
- Remote control function
- Key-linked function
- Wireless transmitter-linked function
- Key-off operation function
- Catch protection function
- Window open warning function
|
| Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model) |
Replaced Part or Performed Procedure |
Necessary Procedure | Effect/Inoperative Function When Necessary Procedures are not Performed |
Link | |
*: When performing learning using the Techstream.
Click here | |
Disconnect cable from negative auxiliary battery terminal |
Perform steering sensor zero point calibration |
Lane Departure Alert System (w/ Steering Control) |
| |
Pre-collision System | |
Intelligent Clearance Sonar System* | |
Lighting System (for HV Model with Cornering Light) | |
Memorize steering angle neutral point |
Parking Assist Monitor System |
| |
Panoramic View Monitor System |
|
- Front door glass sub-assembly
- Front door glass run
| Initialize power window control system |
- Auto up and down function
- Jam protection function
- Remote control function
- Key-linked function
- Wireless transmitter-linked function
- Key-off operation function
- Catch protection function
- Window open warning function
|
|
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE 1. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY
Click here 2. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH
Click here 3. REMOVE FRONT DOOR PANEL PROTECTOR
Click here 4. REMOVE FRONT DOOR GLASS RUN
Click here 5. DISCONNECT FRONT DOOR WEATHERSTRIP
| (a) Disengage the 2 clips and disconnect the front door weatherstrip. |
|
6. REMOVE FRONT DOOR WINDOW FRAME MOULDING (CENTER PILLAR SIDE) HINT:
When
removing the front door window frame moulding (center pillar side),
heat the vehicle body and front door window frame moulding (center
pillar side) using a heat light. Heating Temperature |
Item | Temperature | |
Vehicle Body | 40 to 60°C (104 to 140°F) | |
Front Door Window Frame Moulding (Center Pillar Side) |
20 to 30°C (68 to 86°F) |

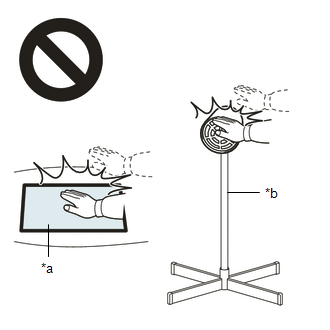

CAUTION:
- Do not touch the heat light and heated parts, touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
|
*a | Heated Part | |
*b | Heat Light |
NOTICE: Do not heat the vehicle body or front door window frame moulding (center pillar side) excessively.
(a) Using a heat light, heat the front door window frame moulding (center pillar side).

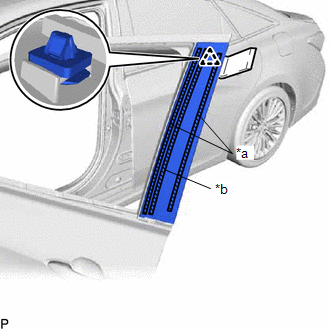

| (b)
Using a moulding remover, disengage the clip and separate the
double-sided tape and caulking sponge to remove the front door window
frame moulding (center pillar side). |
 |
|
*a | Double-sided Tape | |
*b | Caulking Sponge | | |
7. REMOVE FRONT DOOR UPPER WINDOW FRAME MOULDING (a) Insert a 4.0 mm (0.157 in.) drill bit into a drill.

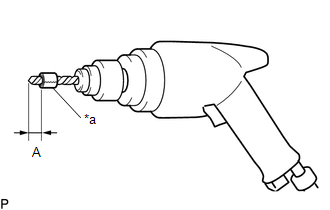

| (b) Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.
Standard Measurement: |
Area | Measurement | |
A | 5.0 mm (0.197 in.) |
NOTICE: Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep. |
|

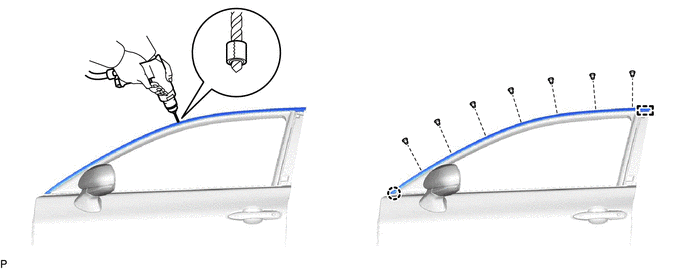

(c) Lightly press the drill bit against the rivets to drill off the rivet flanges, and remove the 7 rivets.
 CAUTION: Be careful of the drilled rivets, as they may be hot.
NOTICE:
- Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.
- Prying the rivets with the drill may damage the rivet installation holes or drill bit.
(d) Using a vacuum cleaner, remove the rivet fragments and shavings from the drilled areas.

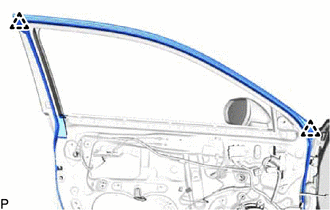

(e) Disengage the claw and guide to remove the front door upper window frame moulding from the door frame. |
