PARTS LOCATION

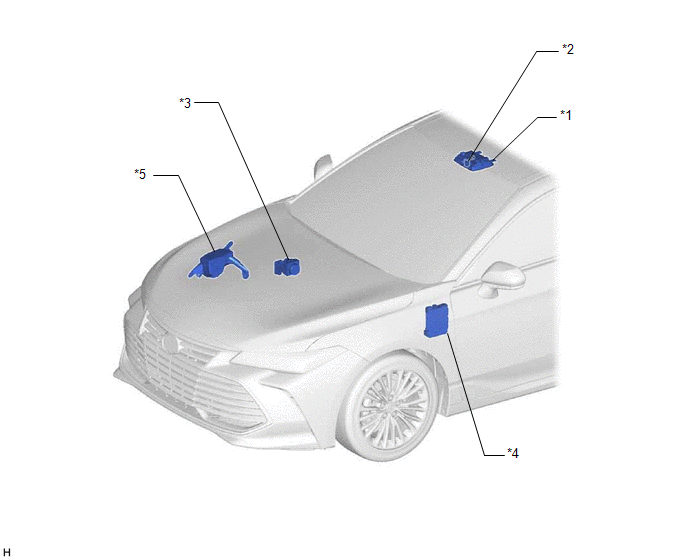

ILLUSTRATION

*1

ROOF CONSOLE BOX SUB-ASSEMBLY

*2

TELEPHONE MICROPHONE ASSEMBLY

*3

PARKING BRAKE ECU (BRAKE ACTUATOR ASSEMBLY)

*4

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-ACC FUSE

- ECU-DCC NO. 2 FUSE

- ECU-IG1 NO. 4 FUSE

- ECU-IG2 NO. 3 FUSE

- DCM FUSE

- PANEL FUSE

- METER-IG2 FUSE

- RADIO FUSE

*5

NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY

- AMP NO. 1 FUSE (for 14 Speakers)

- AMP NO. 2 FUSE (for 14 Speakers)

-

-

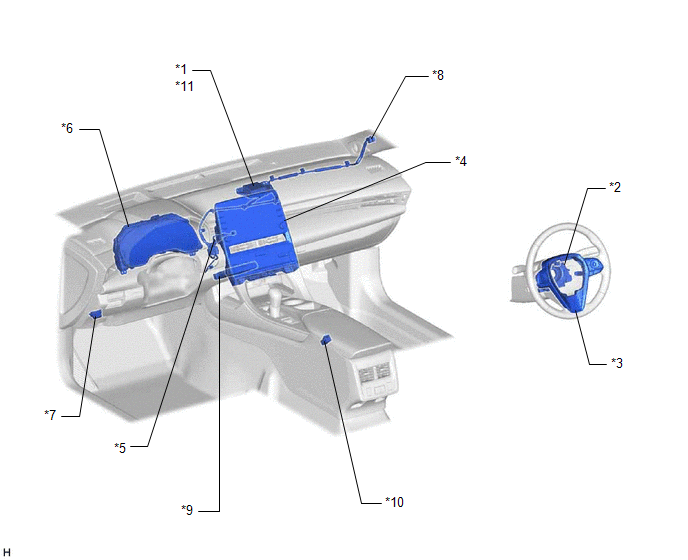

ILLUSTRATION

*1

NAVIGATION ANTENNA ASSEMBLY

*2

SPIRAL CABLE SUB-ASSEMBLY

*3

STEERING PAD SWITCH ASSEMBLY

*4

RADIO AND DISPLAY RECEIVER ASSEMBLY

*5

NO. 5 ANTENNA CORD SUB-ASSEMBLY

*6

COMBINATION METER ASSEMBLY

*7

DLC3

*8

NO. 4 ANTENNA CORD SUB-ASSEMBLY

*9

DCM (TELEMATICS TRANSCEIVER)

*10

STEREO JACK ADAPTER ASSEMBLY

*11

- GPS

-

-

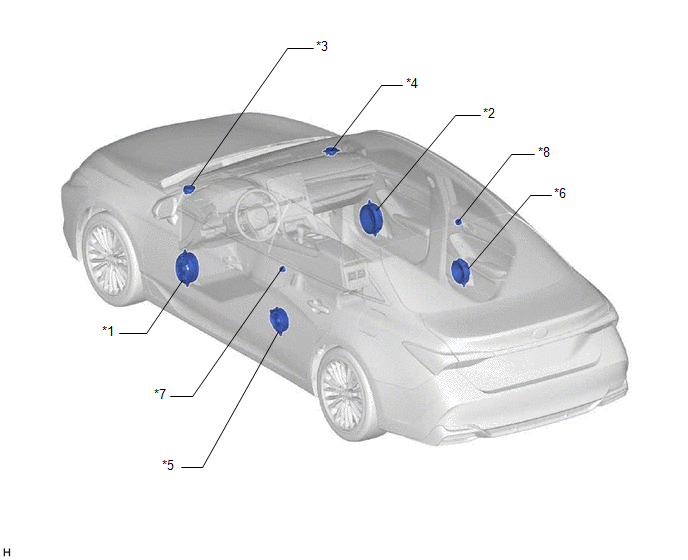

ILLUSTRATION

for 8 Speakers

*1

FRONT NO. 1 SPEAKER ASSEMBLY LH

*2

FRONT NO. 1 SPEAKER ASSEMBLY RH

*3

FRONT NO. 2 SPEAKER ASSEMBLY LH

*4

FRONT NO. 2 SPEAKER ASSEMBLY RH

*5

REAR SPEAKER ASSEMBLY LH

*6

REAR SPEAKER ASSEMBLY RH

*7

REAR NO. 2 SPEAKER ASSEMBLY LH

*8

REAR NO. 2 SPEAKER ASSEMBLY RH

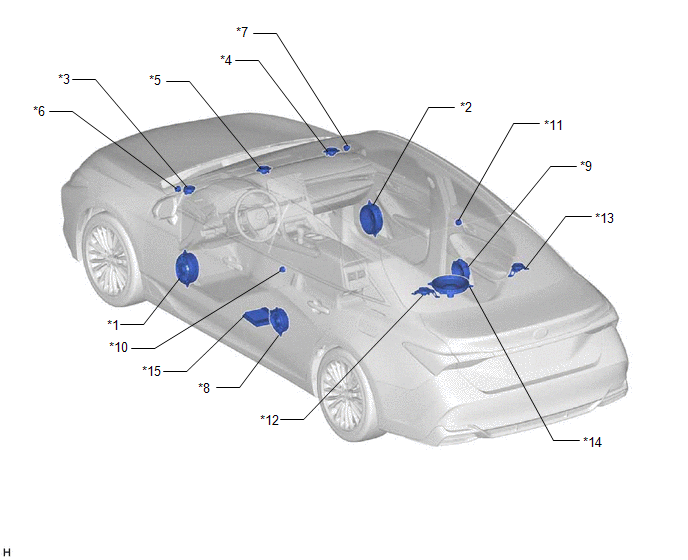

ILLUSTRATION

for 14 Speakers

*1

FRONT NO. 1 SPEAKER ASSEMBLY LH

*2

FRONT NO. 1 SPEAKER ASSEMBLY RH

*3

FRONT NO. 2 SPEAKER ASSEMBLY LH

*4

FRONT NO. 2 SPEAKER ASSEMBLY RH

*5

FRONT NO. 4 SPEAKER ASSEMBLY

*6

FRONT NO. 3 SPEAKER ASSEMBLY LH

*7

FRONT NO. 3 SPEAKER ASSEMBLY RH

*8

REAR SPEAKER ASSEMBLY LH

*9

REAR SPEAKER ASSEMBLY RH

*10

REAR NO. 2 SPEAKER ASSEMBLY LH

*11

REAR NO. 2 SPEAKER ASSEMBLY RH

*12

SPEAKER ASSEMBLY WITH BRACKET LH

*13

SPEAKER ASSEMBLY WITH BRACKET RH

*14

REAR NO. 3 SPEAKER ASSEMBLY

*15

STEREO COMPONENT AMPLIFIER ASSEMBLY

-

-

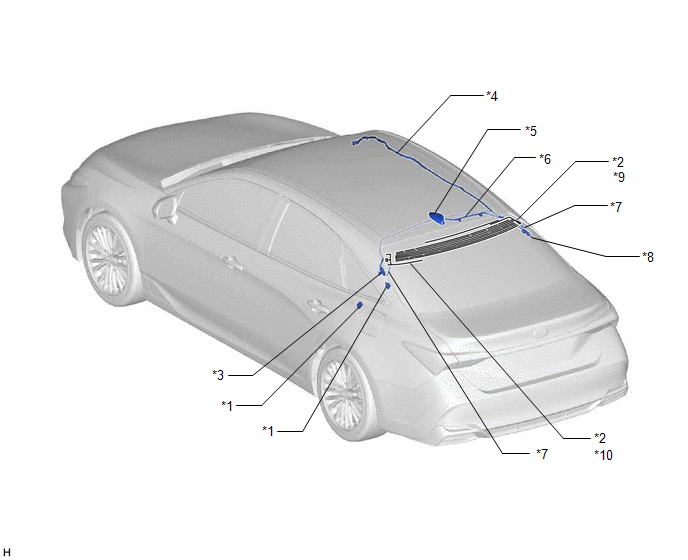

ILLUSTRATION

*1

RADIO SETTING CONDENSOR

*2

WINDOW GLASS ANTENNA WIRE

*3

NO. 2 AMPLIFIER ANTENNA ASSEMBLY

*4

NO. 3 ANTENNA CORD SUB-ASSEMBLY

*5

TELEPHONE ANTENNA ASSEMBLY (w/ SXM Function)

- SiriusXM

*6

NO. 2 ANTENNA CORD SUB-ASSEMBLY

(w/ SXM Function)

*7

ANTENNA CORD SUB-ASSEMBLY

*8

NO. 1 AMPLIFIER ANTENNA ASSEMBLY

*9

- FM Main

- AM

*10

- FM Sub
