Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Rear Wheel House Plate

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual / Vehicle Exterior / Exterior Panels / Trim / Rear Wheel House Plate

Components

COMPONENTS

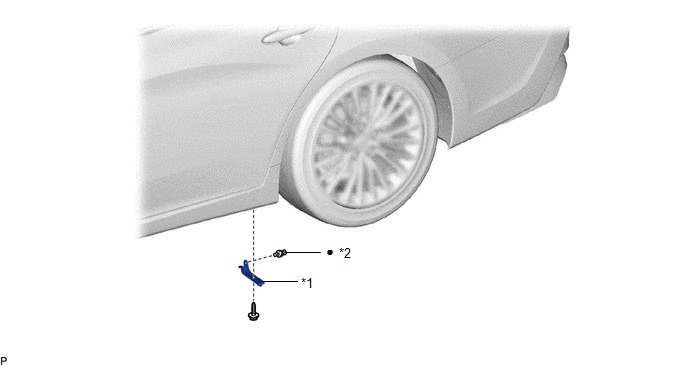

ILLUSTRATION

*1

FRONT ROCKER PANEL MOULDING END COVER

*2

CLIP

●

Non-reusable part

-

-

Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

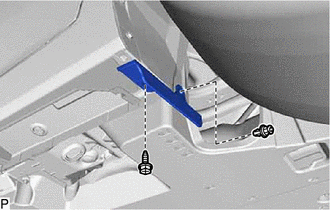

1. INSTALL FRONT ROCKER PANEL MOULDING END COVER

(a) Install the front rocker panel moulding end cover with the screw.

(b) Install a new clip.

Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE FRONT ROCKER PANEL MOULDING END COVER

(a) Remove the clip.

(b) Remove the screw and front rocker panel moulding end cover.
