Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Removal

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual / Vehicle Exterior / Lighting (ext) / Side Turn Signal Light Assembly / Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during side turn signal light assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link
  • Outer rear view mirror assembly LH
  • Outer rear view mirror assembly RH

Side television camera view adjustment

Panoramic view monitor system

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link
  • Outer rear view mirror assembly LH
  • Outer rear view mirror assembly RH

Side television camera view adjustment

Panoramic view monitor system

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER

Click here

2. REMOVE OUTER MIRROR

Click here

3. REMOVE OUTER MIRROR COVER

Click here

4. REMOVE VISOR HOUSING

Click here

5. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY

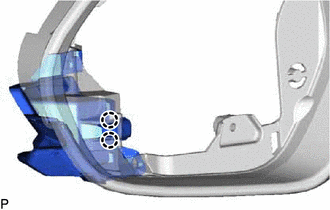

(a) Disengage the 2 claws.

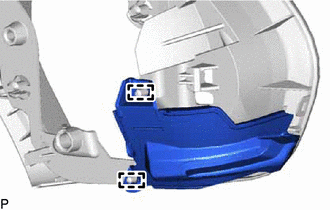

(b) Disengage the 2 guides to remove the side turn signal light assembly.
    Installation
