Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: System Diagram

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual / Vehicle Exterior / Mirror (ext) / Power Mirror Control System(for Gasoline Model With Memory) / System Diagram

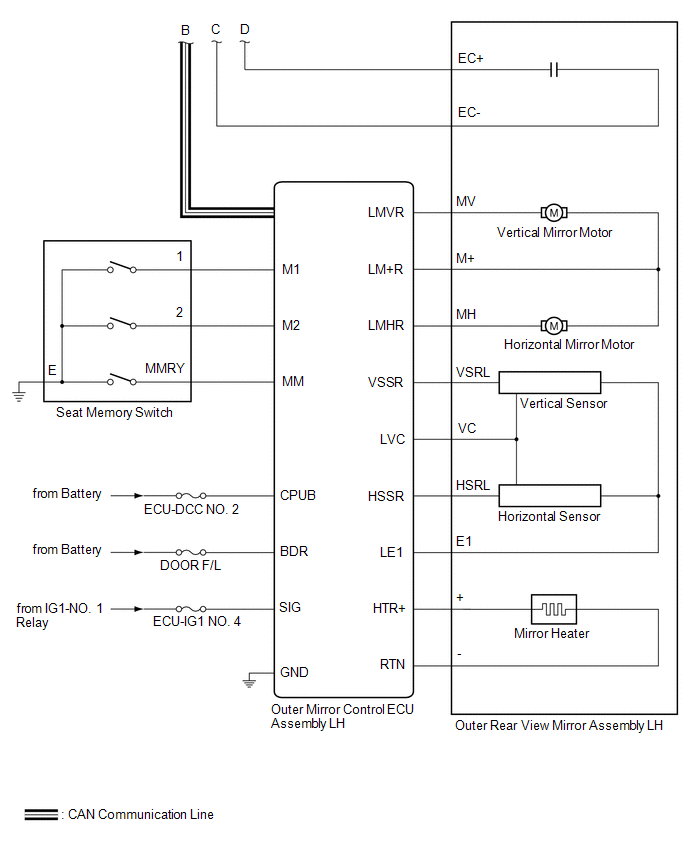

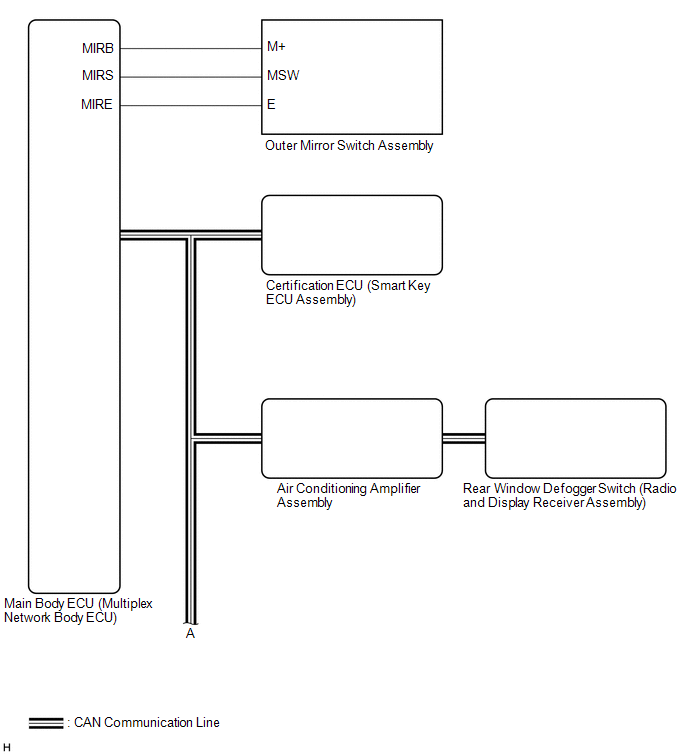

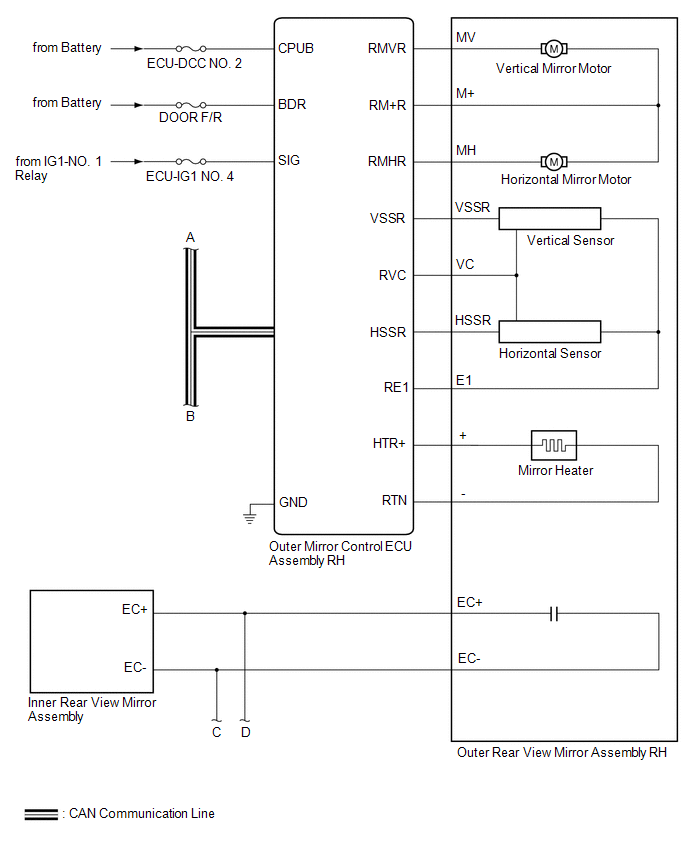

SYSTEM DIAGRAM

Communication Table

Sender

Receiver

Signal

Line

Air Conditioning Amplifier Assembly

Outer Mirror Control ECU Assembly

Mirror heater drive request signal

CAN

Main Body ECU (Multiplex Network Body ECU)

Outer Mirror Control ECU Assembly
  • IG signal
  • ACC signal
  • Outer mirror switch assembly signal
  • Mirror position request signal (seat position memory and reactivation function)

CAN

Outer Mirror Control ECU Assembly

Main Body ECU (Multiplex Network Body ECU)
  • Outer mirror state signal
  • Seat memory switch signal

CAN

Certification ECU (Smart Key ECU Assembly)

Main Body ECU (Multiplex Network Body ECU)

Key ID signal

CAN

Radio and Display Receiver Assembly

Air Conditioning Amplifier Assembly

Mirror heater switch (rear window defogger switch) operation signal

CAN
    System Description

    Terminals Of Ecu
