Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY

NOTICE:

Do not touch the speaker cone.

(a) Connect the connector.

(b) Engage the 2 guides to temporarily install the front No. 1 speaker assembly.

(c) Install the front No. 1 speaker assembly with the 4 screws.

*A

for LH Side

*B

for RH Side

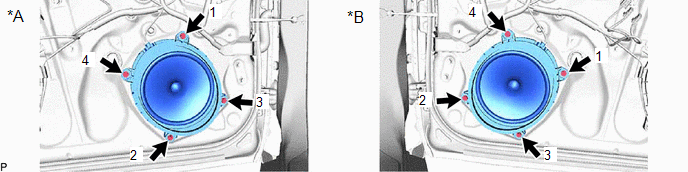

HINT:

Install the screws in the order shown in the illustration.

2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

Click here

3. INSTALL COURTESY LIGHT ASSEMBLY

Click here

4. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

Click here

5. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

Click here

6. INSTALL FRONT DOOR TRIM POCKET COVER

Click here

7. INSTALL FRONT DOOR ARMREST COVER SUB-ASSEMBLY

Click here

8. INSPECT POWER WINDOW OPERATION

for Gasoline Model: Click here

for HV Model: Click here

    Inspection
