COMPONENTS

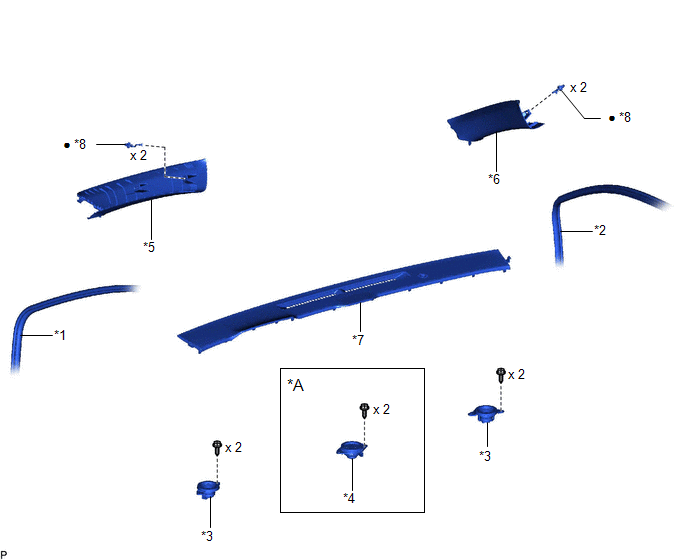

ILLUSTRATION

*A

for 14 Speakers

-

-

*1

FRONT DOOR OPENING TRIM WEATHERSTRIP LH

*2

FRONT DOOR OPENING TRIM WEATHERSTRIP RH

*3

FRONT NO. 2 SPEAKER ASSEMBLY

*4

FRONT NO. 4 SPEAKER ASSEMBLY

*5

FRONT PILLAR GARNISH LH

*6

FRONT PILLAR GARNISH RH

*7

NO. 1 DEFROSTER NOZZLE GARNISH

*8

FRONT PILLAR GARNISH CLIP

●

Non-reusable part

-

-
    Instrument Panel Speaker

    Inspection
