REMOVAL CAUTION / NOTICE / HINT
The
necessary procedures (adjustment, calibration, initialization, or
registration) that must be performed after parts are removed and
installed, or replaced during back window glass sub-assembly
removal/installation are shown below. Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model) |
Replaced Part or Performed Procedure |
Necessary Procedure | Effect/Inoperative Function When Necessary Procedures are not Performed |
Link | |
*: When performing learning using the Techstream.
Click here  | |
Disconnect cable from negative battery terminal |
Perform steering sensor zero point calibration |
Lane departure alert system (w/ Steering Control) |
| |
Pre-collision system | |
Intelligent clearance sonar system* | |
Lighting system (for Gasoline Model with Cornering Light) | |
Memorize steering angle neutral point |
Parking assist monitor system |
| |
Panoramic view monitor system |
| |
Front passenger seat | Zero point calibration (Occupant classification system) |
- Occupant classification system
- Passenger airbag ON/OFF indicator
- Airbag system (Front passenger side)
- Seat belt warning system (Front passenger)
|
| Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model) |
Replaced Part or Performed Procedure |
Necessary Procedure | Effect/Inoperative Function When Necessary Procedures are not Performed |
Link | |
*: When performing learning using the Techstream.
Click here | |
Disconnect cable from negative auxiliary battery terminal |
Perform steering sensor zero point calibration |
Lane departure alert system (w/ Steering Control) |
| |
Pre-collision system | |
Intelligent clearance sonar system* | |
Lighting system (for HV Model with Cornering Light) | |
Memorize steering angle neutral point |
Parking assist monitor system |
| |
Panoramic view monitor system |
| |
Front passenger seat | Zero point calibration (Occupant classification system) |
- Occupant classification system
- Passenger airbag ON/OFF indicator
- Airbag system (Front passenger side)
- Seat belt warning system (Front passenger)
|
| PROCEDURE
1. REMOVE ROOF HEADLINING ASSEMBLY Click here
2. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH
Click here 3. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH
HINT: Use the same procedure as for the LH side. 4. REMOVE CENTER STOP LIGHT SET
Click here 5. REMOVE REAR SEAT SHOULDER BELT COVER
Click here 6. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY
Click here 7. REMOVE BACK WINDOW GLASS SUB-ASSEMBLY

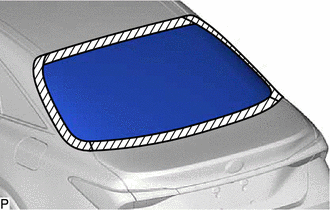

(a) Disconnect each connector. (b)
Apply protective tape to the area around the installation position of
the back window glass sub-assembly on the vehicle body to prevent it
from being scratched.
 | Protective Tape |

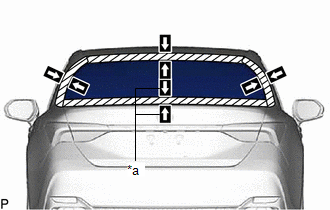

| (c) Place matchmarks on the back window glass sub-assembly and vehicle body at the locations indicated in the illustration.
HINT: Matchmarks are not necessary if the back window glass sub-assembly is not going to be reused. |
|

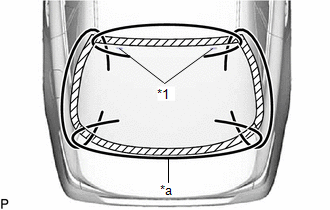

| (d) Pass a piano wire between the vehicle body and back window glass sub-assembly from the interior. |
 |
|
*1 | Back Window Glass Stopper | |
*a | Piano Wire | | |
(e) Tie both wire ends to wooden blocks or similar objects that can serve as handles.
(f) Cut off the adhesive by pulling the piano wire around the back window glass sub-assembly.
NOTICE:
- When separating the back window glass sub-assembly, be careful not to damage the paint or interior and exterior ornaments.
- When cutting off the adhesive, take care not to damage the connectors on the back window glass sub-assembly.

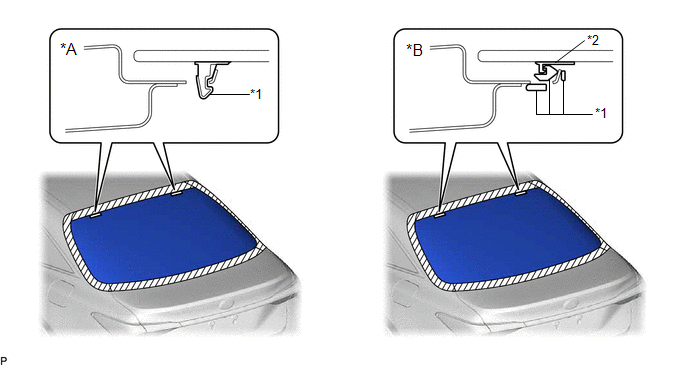

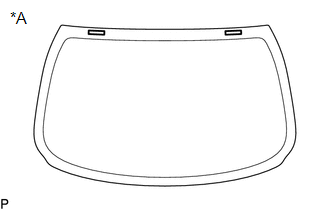

(g) Disengage the back window glass stoppers.
|
*A | for 1-piece Type |
*B | for 2-piece Type | |
*1 | No. 1 Back Window Glass Stopper |
*2 | No. 2 Back Window Glass Stopper |
NOTICE:
- The No. 1 back window glass stoppers and No. 2 back window glass
stoppers are installed to the back window glass sub-assembly as shown in
the illustration. Be careful not to damage the back window glass
sub-assembly when cutting the adhesive.
- To prevent the back window glass sub-assembly from falling when
performing this operation, be sure to hold the back window glass
sub-assembly using suction cups.
HINT: Depending on the vehicle, either 1-piece type or 2-piece type stoppers may be present.
(h) Using suction cups, remove the back window glass sub-assembly.
NOTICE:
- Be careful not to drop the back window glass sub-assembly.
- Leave as much adhesive on the vehicle body as possible when removing the back window glass sub-assembly.
8. REMOVE BACK WINDOW GLASS ADHESIVE DAM (a) When reusing the back window glass:

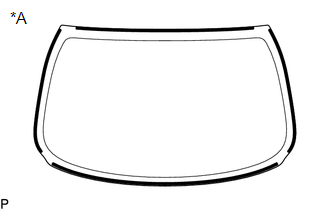

| (1) Using a scraper, remove the 4 back window glass adhesive dams.
NOTICE:
- Be careful not to damage the back window glass.
- Be sure to replace the back window glass adhesive dams with new ones.
| |
9. REMOVE NO. 1 BACK WINDOW GLASS STOPPER (for 1-piece Type) (a) When reusing the back window glass:

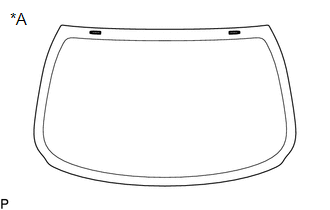

| (1) Using a scraper, remove the 2 No. 1 back window glass stoppers.
NOTICE:
- Be careful not to damage the back window glass.
- Be sure to replace the 1-piece type No. 1 back window glass stoppers
with new 2-piece type No. 1 and No. 2 back window glass stoppers.
| |
10. REMOVE NO. 2 BACK WINDOW GLASS STOPPER (for 2-piece Type) (a) When reusing the back window glass:

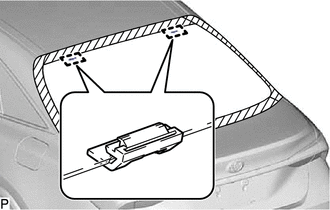

| (1) Using a scraper, remove the 2 No. 2 back window glass stoppers.
NOTICE:
- Be careful not to damage the back window glass.
- Be sure to replace the No. 2 back window glass stoppers with new ones.
| |
11. REMOVE NO. 1 BACK WINDOW GLASS STOPPER (for 2-piece Type)
| (a) Remove the 2 No. 1 back window glass stoppers. NOTICE:
Be sure to replace the No. 1 back window glass stoppers with new ones. |
|
12. CLEAN BACK WINDOW GLASS (a) When reusing the back window glass:

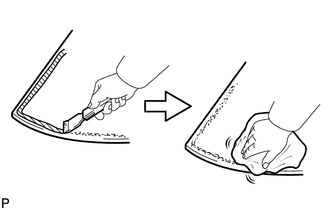

| (1) Using a scraper, remove any remaining adhesive dam and adhesive residue from the back window glass.
NOTICE: Be careful not to damage the back window glass. |
|
(2) Clean the outer circumference of the back window glass with a non-residue solvent.
NOTICE:
- Do not touch the back window glass surface after cleaning it.
- Even if using a new back window glass, clean it with a non-residue solvent.
13. CLEAN VEHICLE BODY (a) Clean and shape the contact surface of the vehicle body.

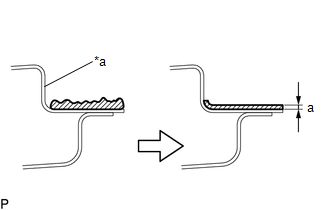

(1) Using a knife, cut away excess adhesive on the contact surface of the vehicle body as shown in the illustration.
|
*a | Vehicle Body | |
|
Adhesive | Standard Dimension: |
Area | Dimension | |
a | 1.0 mm (0.0394 in.) or more |
NOTICE: Be careful not to damage the vehicle body. HINT:
Leave approximately 1.0 mm (0.0394 in.) of adhesive on the vehicle body.
(2) Clean the contact surface of the vehicle body with a piece of cloth saturated with non-residue solvent.
HINT: Even if all of the adhesive has been removed, clean the vehicle body. |
