On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

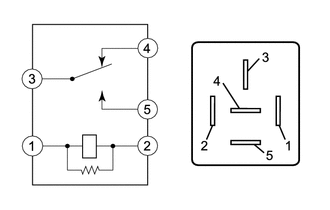

1. INSPECT DEF RELAY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

3 - 4

Auxiliary battery voltage applied between terminals 1 and 2

10 kΩ or higher

3 - 4

Auxiliary battery voltage not applied between terminals

Below 1 Ω

3 - 5

Auxiliary battery voltage applied between terminals 1 and 2

Below 1 Ω

3 - 5

Auxiliary battery voltage not applied between terminals

10 kΩ or higher

4 - 5

Always

10 kΩ or higher

If the result is not as specified, replace the DEF relay.
