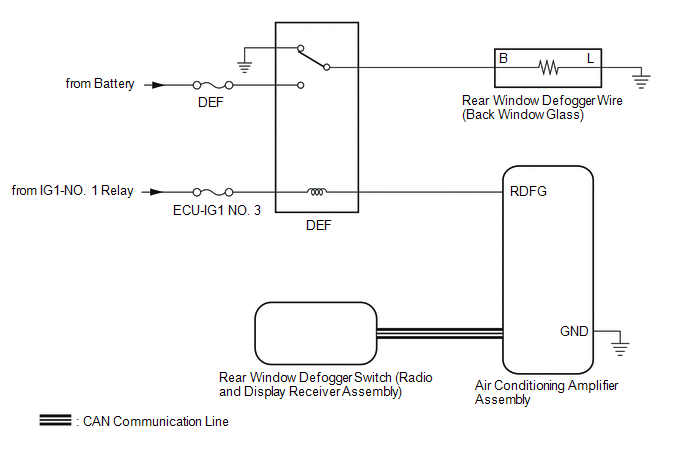

SYSTEM DIAGRAM

Communication Table

Transmitter

Receiver

Signal

Communication Method

Rear Window Defogger Switch (Radio and Display Receiver Assembly)

Air Conditioning Amplifier Assembly

Rear Window Defogger Switch Signal

CAN
    System Description

    Terminals Of Ecu
