REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during level warning switch assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

Front bumper assembly
  • Measurement of ultrasonic sensor detection angle
  • Ultrasonic sensor detection angle registration
  • Intelligent Clearance Sonar System
  • Intuitive Parking Assist System

Front television camera view adjustment

Panoramic View Monitor System

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

Front bumper assembly
  • Measurement of ultrasonic sensor detection angle
  • Ultrasonic sensor detection angle registration
  • Intelligent Clearance Sonar System
  • Intuitive Parking Assist System

Front television camera view adjustment

Panoramic View Monitor System

PROCEDURE

1. REMOVE FRONT BUMPER ASSEMBLY

Click here

2. DRAIN WASHER FLUID

Click here

3. REMOVE LEVEL WARNING SWITCH ASSEMBLY

(a) Disconnect the connector.

Remove in this Direction

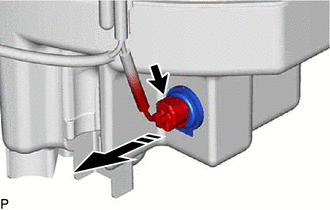

(b) Remove the level warning switch assembly as shown in the illustration.

    Installation

    Washer Motor
