REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear package tray speaker removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function When Necessary Procedures are not Performed
*: When performing learning using the Techstream. Click here
Disconnect cable from negative battery terminal	Perform steering sensor zero point calibration	Lane Departure Alert System (w/ Steering Control)
		Pre-collision System
		Intelligent Clearance Sonar System*
		Lighting System (for Gasoline Model with Cornering Light)
	Memorize steering angle neutral point	Parking Assist Monitor System
	Memorize steering angle neutral point	Panoramic View Monitor System

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function When Necessary Procedures are not Performed
*: When performing learning using the Techstream. Click here
Disconnect cable from negative auxiliary battery terminal	Perform steering sensor zero point calibration	Lane Departure Alert System (w/ Steering Control)
		Pre-collision System
		Intelligent Clearance Sonar System*
		Lighting System (for HV Model with Cornering Light)
	Memorize steering angle neutral point	Parking Assist Monitor System
	Memorize steering angle neutral point	Panoramic View Monitor System

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here

PROCEDURE

1. REMOVE REAR SEAT ASSEMBLY

Click here

2. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

Click here

3. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

HINT:

Use the same procedure as for the LH side.

4. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY LH

Click here

5. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.

6. REMOVE ROOF SIDE INNER GARNISH LH

Click here

7. REMOVE ROOF SIDE INNER GARNISH RH

HINT:

Use the same procedure as for the LH side.

8. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH

Click here

9. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.

10. REMOVE CENTER STOP LIGHT SET

Click here

11. REMOVE REAR SEAT SHOULDER BELT COVER

Click here

12. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

Click here

13. REMOVE REAR NO. 3 SPEAKER ASSEMBLY

NOTICE:

Do not touch the speaker cone.

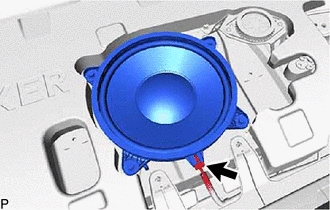

(a) Disconnect the connector.

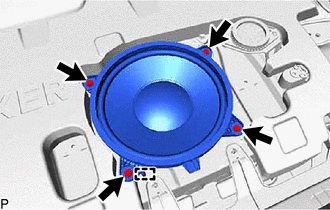

(b) Remove the 4 bolts and disengage the guide to remove the rear No. 3 speaker assembly.

14. REMOVE SPARE WHEEL COVER ASSEMBLY (w/o Seat Heater System)

Click here

15. REMOVE LUGGAGE COMPARTMENT INNER TRIM PAD (w/o Seat Heater System)

Click here

16. REMOVE ROOM PARTITION BOARD LH

Click here

17. REMOVE ROOM PARTITION BOARD RH

Click here

18. REMOVE NO. 1 UPPER BACK PANEL HOLE COVER

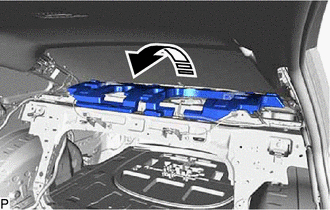

(a) Remove the No. 1 upper back panel hole cover as shown in the illustration.

Remove in this Direction

19. REMOVE SPEAKER ASSEMBLY WITH BRACKET

NOTICE:

Do not touch the speaker cone.

(a) for LH Side:

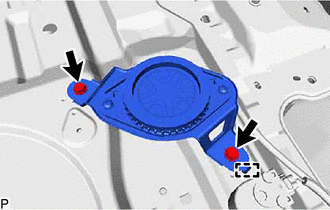

(1) Remove the 2 bolts and disengage the guide.

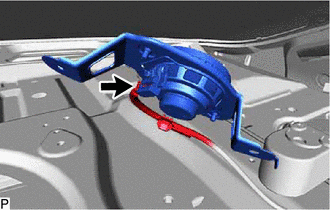

(2) Disconnect the connector to remove the speaker assembly with bracket.

(b) for RH Side:

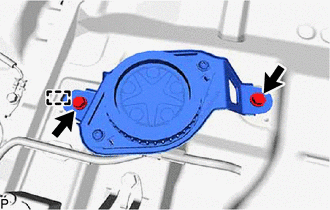

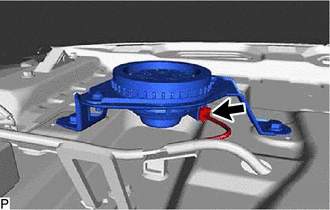

(1) Disconnect the connector.

(2) Remove the 2 bolts and disengage the guide to remove the speaker assembly with bracket.

Installation
