COMPONENTS

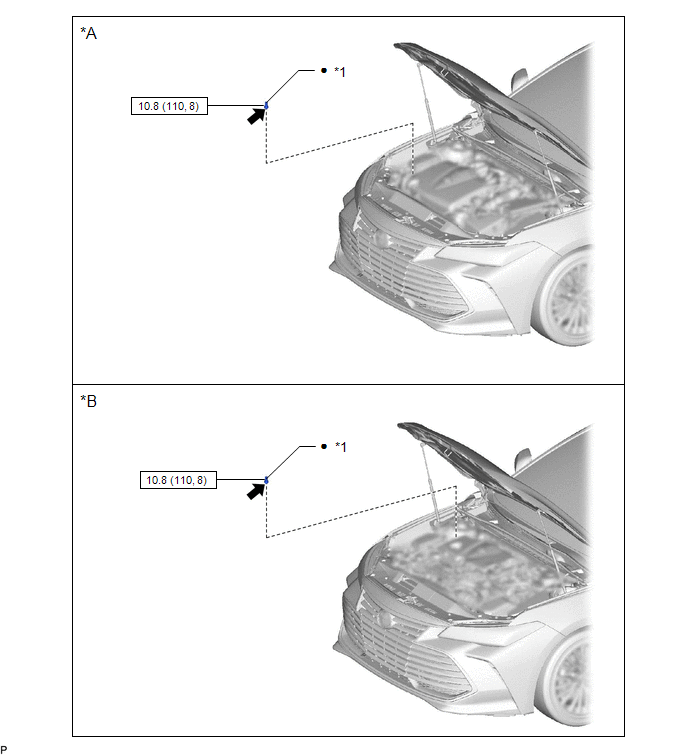

ILLUSTRATION

*A

for Gasoline Model

*B

for HV Model

*1

AIR CONDITIONER PRESSURE SENSOR

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

for Gasoline Model:

Compressor oil ND-OIL 12 or equivalent

for HV Model:

Compressor oil ND-OIL 11 or equivalent

-

-
