REMOVAL

PROCEDURE

1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

Click here

2. REMOVE AIR CONDITIONER PRESSURE SENSOR

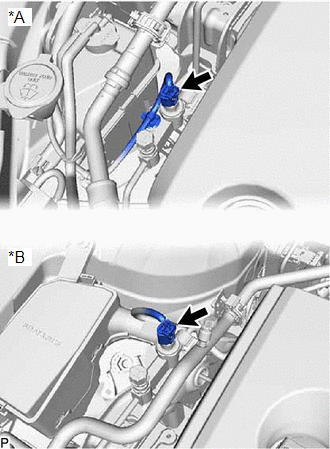

(a) Disconnect the connector.

*A

for Gasoline Model

*B

for HV Model

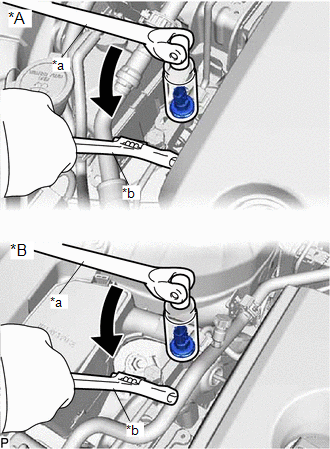

(b) Using a 27 mm deep socket wrench, remove the air conditioner pressure sensor as shown in the illustration.

NOTICE:

Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

*A

for Gasoline Model

*B

for HV Model

*a

Turn

*b

Hold
