COMPONENTS

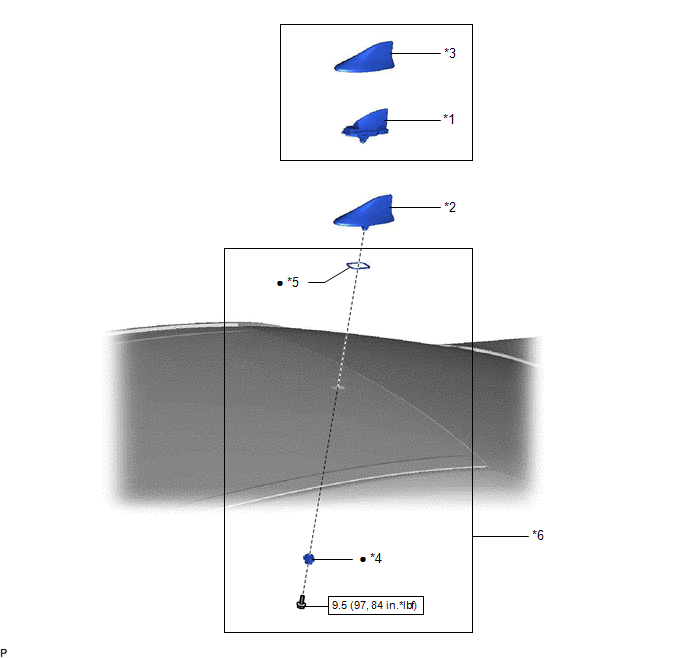

ILLUSTRATION

*1

TELEPHONE ANTENNA ASSEMBLY

*2

TELEPHONE ANTENNA ASSEMBLY WITH COVER

*3

COVER

*4

WASHER AND HOLDER

*5

SEAL

*6

TELEPHONE ANTENNA HOUSING

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
