Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Removal

REMOVAL

PROCEDURE

1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

2. REMOVE NO. 1 AIR DUCT

for Manual Tilt and Manual Telescopic Steering Column:

Click here

for Power Tilt and Power Telescopic Steering Column:

Click here

3. REMOVE NO. 2 HEATER COVER

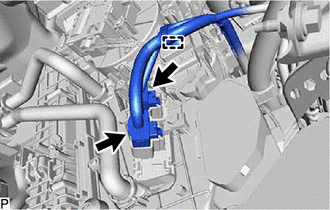

(a) Disconnect the 2 connectors.

(b) Disengage the clamp.

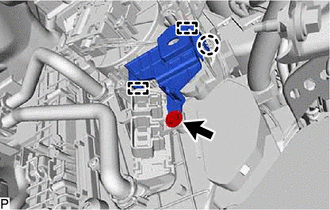

(d) Disengage the claw and 2 guides to remove the No. 2 heater cover.

4. REMOVE QUICK HEATER ASSEMBLY

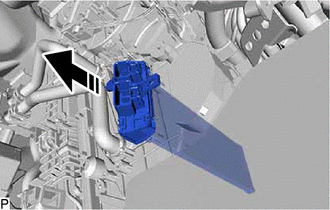

(a) Remove the quick heater assembly as shown in the illustration.

Remove in this Direction
