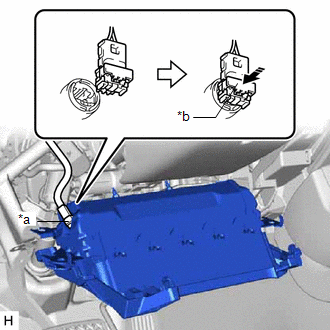

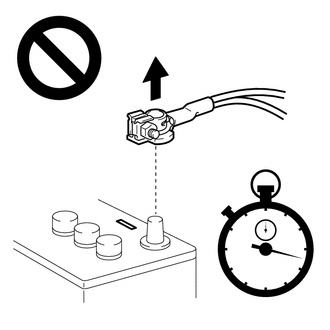

INSTALLATION PROCEDURE 1. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (a) Check that the engine switch (for Gasoline Model) or power switch (for HV Model) is off. (b) Check that the cable is disconnected from the negative (-) auxiliary battery terminal. CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.  (c) Connect the airbag connector to the lower No. 1 instrument panel airbag assembly.
NOTICE: When connecting any airbag connector, take care not to damage the airbag wire harness. (d) Push in the airbag connector locking button to install the airbag connector.

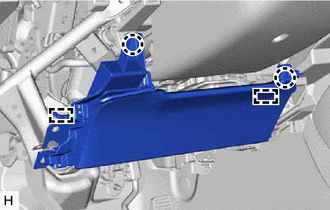

(f) Engage the 2 claws. (g) Install the lower No. 1 instrument panel airbag assembly with the 4 bolts. Torque: 10 N·m {102 kgf·cm, 7 ft·lbf} NOTICE: Confirm that the lower No. 1 instrument panel airbag assembly is installed securely without any excessive gaps and is not protruding outward. 2. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL Click here 3. INSTALL NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY Click here 4. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY Click here 5. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Click here 6. INSTALL INSTRUMENT SIDE PANEL LH Click here 7. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH 8. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH Click here
9. INSTALL FRONT DOOR SCUFF PLATE LH Click here 10. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL for Gasoline Model: Click here for HV Model: Click here
NOTICE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Click here 11. INSTALL LUGGAGE TRIM SERVICE HOLE COVER (for HV Model) Click here 12. PERFORM DIAGNOSTIC SYSTEM CHECK for Gasoline Model: Click here for HV Model: Click here
13. INSPECT SRS WARNING LIGHT for Gasoline Model: Click here
for HV Model: Click here
|
