REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during side No. 1 airbag sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

*: When performing learning using the Techstream.

Click here

Disconnect cable from negative auxiliary battery terminal

Perform steering sensor zero point calibration

Lane Departure Alert System (w/ Steering Control)

Pre-collision System

Intelligent Clearance Sonar System*

Lighting System (for Gasoline Model with Cornering Light)

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

*: When performing learning using the Techstream.

Click here

Disconnect cable from negative auxiliary battery terminal

Perform steering sensor zero point calibration

Lane Departure Alert System (w/ Steering Control)

Pre-collision System

Intelligent Clearance Sonar System*

Lighting System (for HV Model with Cornering Light)

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. PRECAUTION

CAUTION:

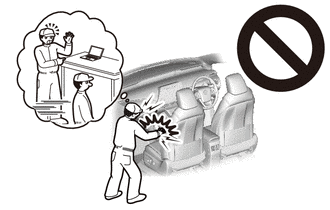

Be sure to read Precaution thoroughly before servicing.

for Gasoline Model: Click here

for HV Model: Click here

NOTICE:

After turning the engine switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click here

2. REMOVE LUGGAGE TRIM SERVICE HOLE COVER (for HV Model)

Click here

3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

for Gasoline Model: Click here

for HV Model: Click here

CAUTION:

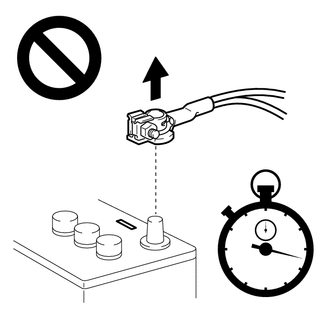

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click here

4. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Gasoline Model)

Click here

5. REMOVE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

Click here

6. REMOVE REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)

Click here

7. REMOVE FRONT DOOR SCUFF PLATE

Click here

8. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

HINT:

Disconnect the front door opening trim weatherstrip to the extent that allows the removal of the center pillar lower garnish.

9. REMOVE REAR DOOR SCUFF PLATE (for Gasoline Model)

Click here

10. REMOVE REAR DOOR SCUFF PLATE (for HV Model)

Click here

11. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

HINT:

Disconnect the rear door opening trim weatherstrip to the extent that allows the removal of the center pillar lower garnish.

12. REMOVE CENTER PILLAR LOWER GARNISH

Click here

13. REMOVE SIDE NO. 1 AIRBAG SENSOR

(a) Check that the engine switch (for Gasoline Model) or power switch (for HV Model) is off.

(b) Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

(c) Disconnect the connector from the side No. 1 airbag sensor.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.

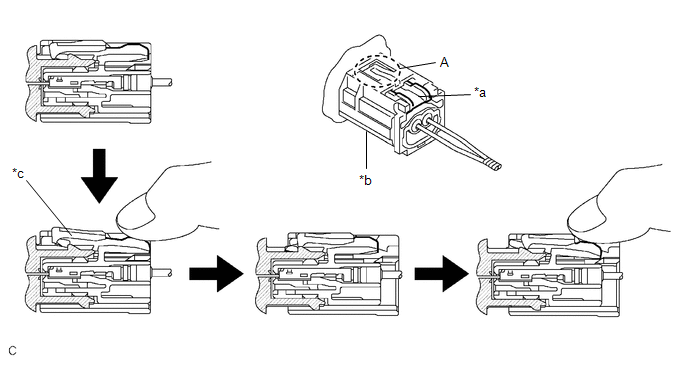

(1) Push down the white housing lock and slide the yellow CPA. (At this time, the connector cannot be disconnected yet.)

*a

White Housing Lock

*b

Yellow CPA

*c

Connector lock is released

-

-

(2) Push down the white housing lock again and disconnect the connector.

NOTICE:

Do not push down the part (A) shown in the illustration when disconnecting the connector.

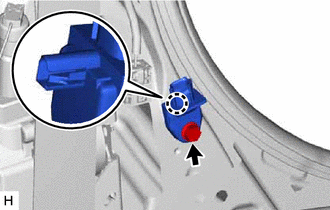

(d) Remove the bolt and disengage the claw to remove the side No. 1 airbag sensor.

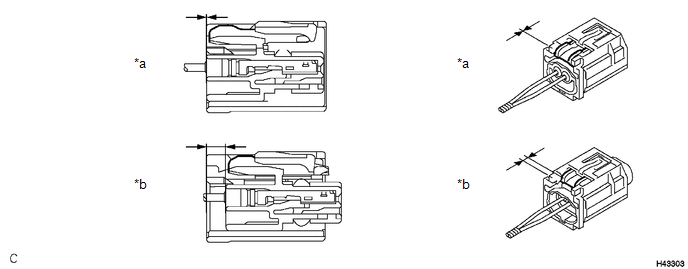

(e) Check that the position of the white housing lock is as shown in the illustration.

*a

Incorrect

*b

Correct
