Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

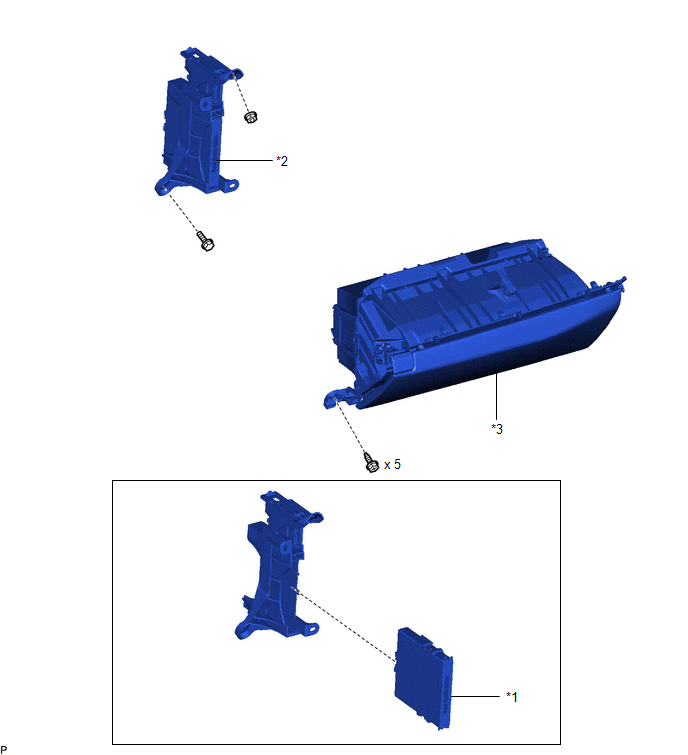

ILLUSTRATION

*1	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)	*2	ECU INTEGRATION BOX RH
*3	LOWER INSTRUMENT PANEL SUB-ASSEMBLY	-	-
