Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: System Diagram

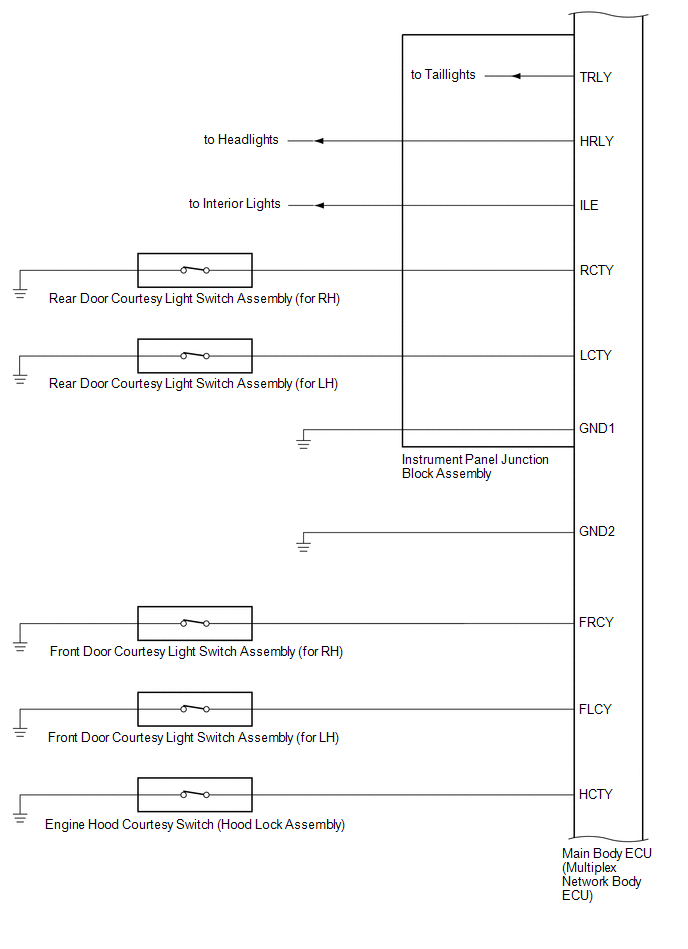

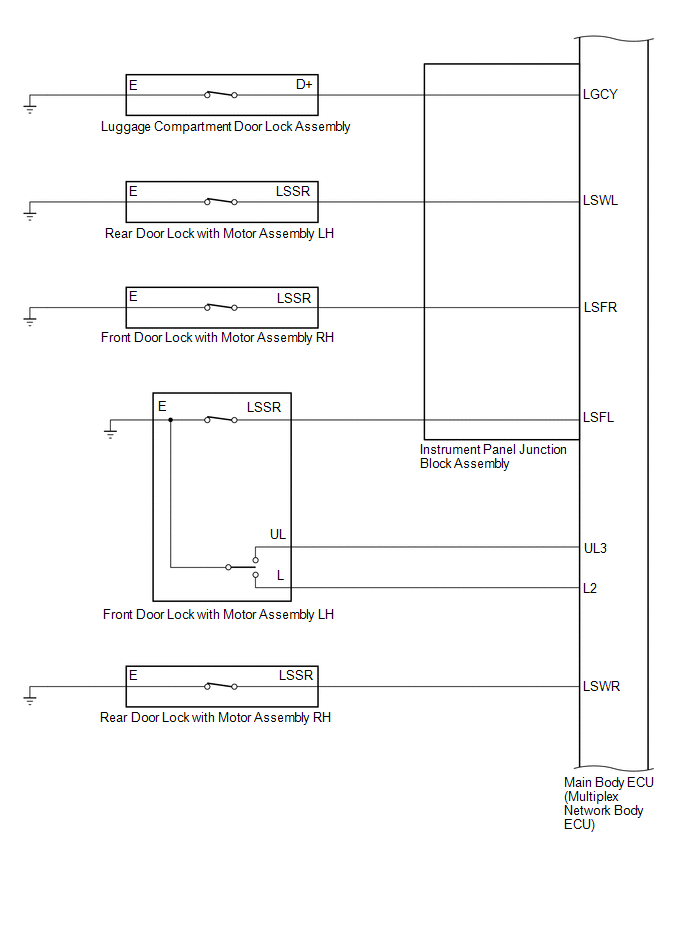

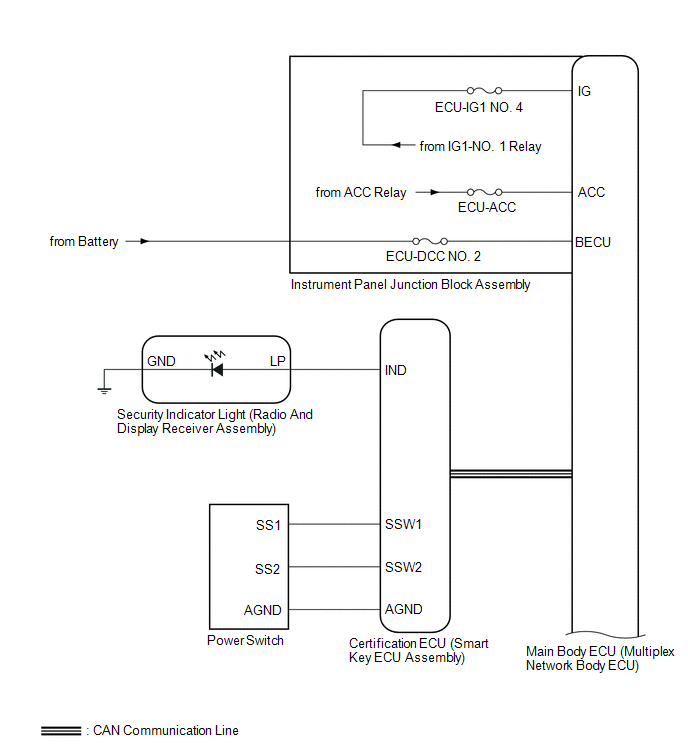

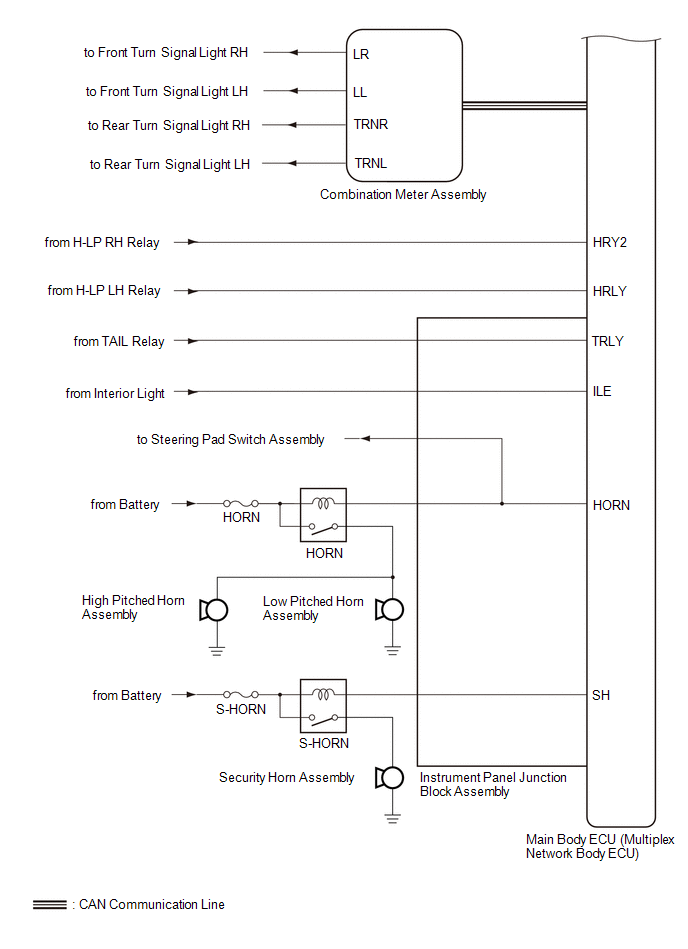

SYSTEM DIAGRAM

    System Description

    Terminals Of Ecu

    See More:

    Toyota Avalon (XX50) 2019-2022 Service & Repair Manual > Sfi System: How To Proceed With Troubleshooting
    CAUTION / NOTICE / HINT HINT: *: Use the Techstream. PROCEDURE 1. VEHICLE BROUGHT TO WORKSHOP NEXT 2. CUSTOMER PROBLEM ANALYSIS NEXT 3. CONNECT TECHSTREAM TO DLC3* HINT: If the display indicates a communication malfunction, inspect the DLC3. When any CAN communication system DTCs are output, perform ...
