DESCRIPTION
- DTC C1ABE is stored when the blind spot monitor sensor LH detects a
short to ground or open in the RCTA buzzer (blind spot monitor buzzer)
circuit.
DTC No. | Detection Item |
DTC Detection Condition | Trouble Area |
C1ABE | Short to GND or Open in Buzzer | Both of the following conditions are met:
- The blind spot monitor system is on
- The blind spot monitor sensor is not sounding the buzzer but the buzzer
receives voltage below a specified level for a specified period of time.
|
- RCTA buzzer (blind spot monitor buzzer)
- Wire harness or connector

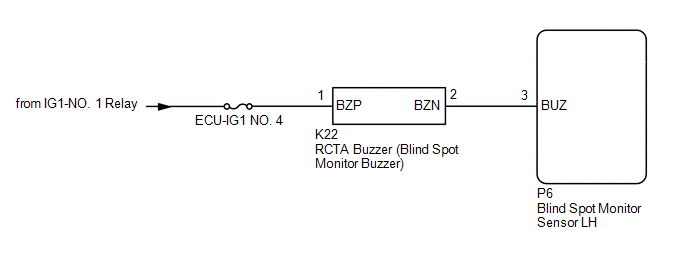

| WIRING DIAGRAM
CAUTION / NOTICE / HINT
NOTICE:
- When checking for DTCs, make sure that the blind spot monitor system is turned on.
- Inspect the fuses for circuits related to this system before performing the following procedure.
PROCEDURE
1. | READ VALUE USING TECHSTREAM (BLIND SPOT MONITOR SENSOR LH STATUS) |
(a) Connect the Techstream to the DLC3. (b) Turn the engine switch on (IG).
(c) Turn the Techstream on. (d) Enter the following menus: Body Electrical / Blind Spot Monitor Slave / Data List.
(e) Read the Data List according to the display on the Techstream. Body Electrical > Blind Spot Monitor Slave > Data List
Tester Display | Measurement Item |
Range | Normal Condition |
Diagnostic Note |
Buzzer Connection | Status of the buzzer connection |
Valid or Invalid | Valid: Buzzer connection is valid
Invalid: Buzzer connection is invalid |
- | Slave Side RCTA Function |
Switches the RCTA function on and off |
OFF or ON | OFF: RCTA function off
ON: RCTA function on |
- | Body Electrical > Blind Spot Monitor Slave > Data List
Tester Display | Buzzer Connection |
Slave Side RCTA Function |
Result | Proceed to |
"Valid" and "ON" is displayed for all items. |
A | "Invalid" or "OFF" is displayed. |
B |
B |
| REPLACE BLIND SPOT MONITOR SENSOR LH |
A |
| |
(a) Turn the engine switch off.
(b) Turn the engine switch on (IG). (c) Recheck for DTCs and check if the same DTC is output again. Body Electrical > Blind Spot Monitor Slave > Trouble Codes
OK: No DTCs are output.
OK | |
USE SIMULATION METHOD TO CHECK |
NG |
| |
3. |
CHECK HARNESS AND CONNECTOR (RCTA BUZZER - BATTERY AND BLIND SPOT MONITOR SENSOR LH) |
(a) Disconnect the K22 RCTA buzzer (blind spot monitor buzzer) connector.
(b) Disconnect the P6 blind spot monitor sensor LH connector. (c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Tester Connection | Condition |
Specified Condition |
K22-2 (BZN) - P6-3 (BUZ) |
Always | Below 1 Ω |
K22-2 (BZN) or P6-3 (BUZ) - Body ground |
Always | 10 kΩ or higher |
(d) Measure the voltage according to the value(s) in the table below. Standard Voltage:
Tester Connection | Condition |
Specified Condition |
K22-1 (BZP) - Body ground |
Engine switch on (IG) |
11 to 14 V |
K22-1 (BZP) - Body ground |
Engine switch off | Below 1 V |
OK |
| REPLACE RCTA BUZZER (BLIND SPOT MONITOR BUZZER) |
NG |
| REPAIR OR REPLACE HARNESS OR CONNECTOR | |
