If a collision with an object may occur due to the vehicle suddenly moving forward due to an accidental accelerator pedal operation, the vehicle moving the unintended direction due to the wrong shift position being selected, or while parking or traveling at low speeds, the sensors detect objects, such as a wall, in the traveling direction of the vehicle, and the system operates to lessen an impact with an object and reduce the resulting damage.

Examples of system operation

The system will operate in situations such as the following if an object is detected in the traveling direction of the vehicle.

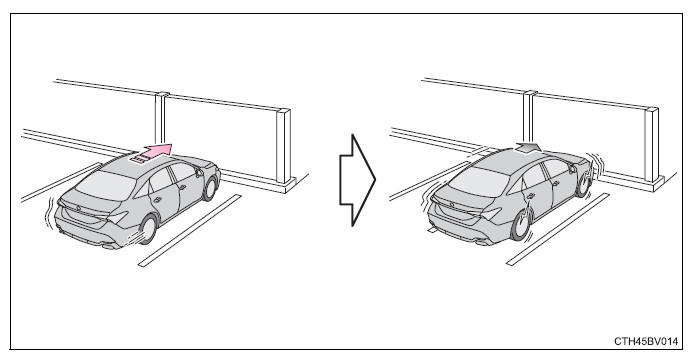

When traveling at a low speed and the brake pedal is not depressed, or is depressed late

Using the driving support systems

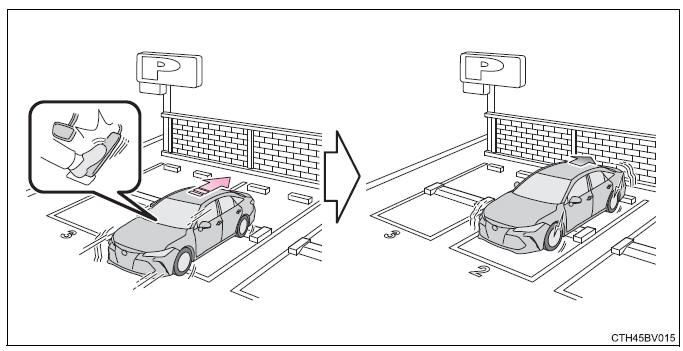

When the accelerator pedal is depressed excessively

Using the driving support systems

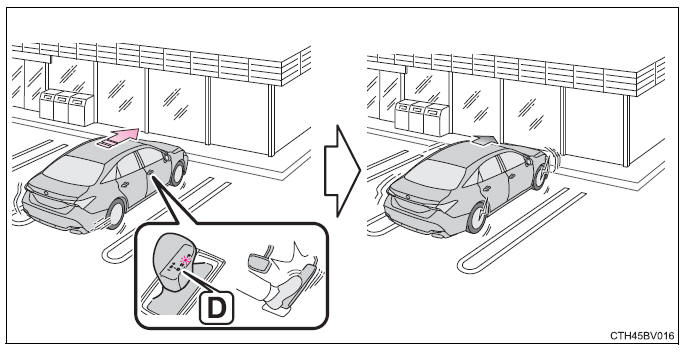

When the vehicle moves in the unintended direction due to the wrong shift position being selected

Using the driving support systems

Rear Cross Traffic Auto Brake function

If a radar sensor detects a vehicle approaching from the right or left at the rear of the vehicle and a collision may occur, this function will perform brake control to reduce the likelihood of an impact with the approaching vehicle.

■ Examples of system operation The system will operate in situations such as the following if an object is detected in the traveling direction of the vehicle.

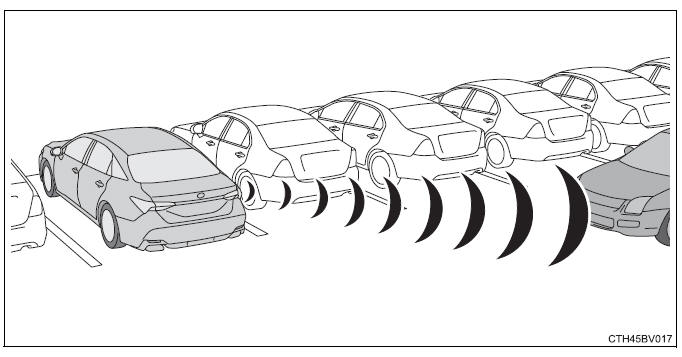

When reversing, a vehicle is approaching and the brake pedal is not depressed, or is depressed late

Using the driving support systems

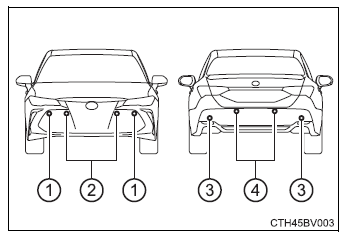

Types of sensors

Front corner sensors
Front center sensors
Rear corner sensors
Rear center sensors

Turning the Intelligent Clearance Sonar system on/off

1. Press of the meter control switches, select .

2. Press of the meter control switches, select .

3. Press of the meter control switch.

4. Select the "Yes" and push .

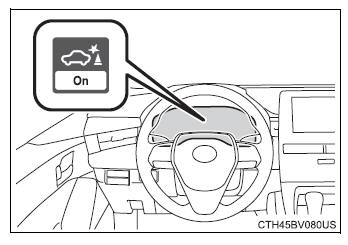

When the Intelligent Clearance Sonar is disabled, the ICS OFF indicator illuminates.

To re-enable the system when it was disabled, select on the multi-information display, select and then "On". If disabled using this method, the system will not be re-enabled by turning the engine switch off and then to IGNITION ON mode.

Using the driving support systems

Displays and buzzers for engine output restriction control and brake control

If the engine output restriction control or brake control operates, a buzzer will sound and a message will be displayed on the multi-information display to alert the driver.

Depending on the situation, engine output restriction control will operate to either limit acceleration or restrict output as much as possible.

Control	Situation	Multi-information display	ICS OFF Indicator	Buzzer
Engine output restriction control is operating (acceleration restriction)	Acceleration greater than a certain amount is not possible.	"Object Detected Acceleration Reduced	Not illuminated	-
Engine output restriction control is operating (output restricted as much as possible)	Stronger-than-normal brake operation is necessary.	"Brake!"		Short beep
Brake control is operating	Emergency braking is necessary.	"Brake!"
Vehicle stopped by system operation	The vehicle has been stopped by brake control operation.	If the accelerator pedal is depressed: "Switch to Brake" If the accelerator pedal is not depressed: "Brake"	Illuminated

Intuitive parking assist

Intelligent Clearance Sonar function
