COMPONENTS

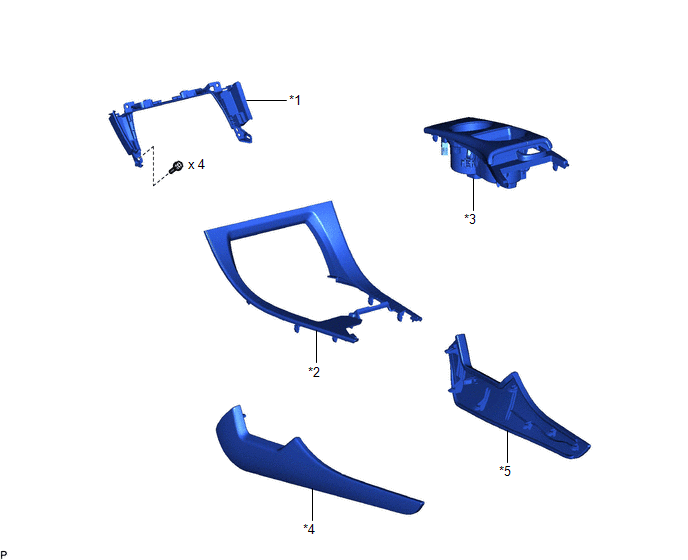

ILLUSTRATION

*1

CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

*2

CONSOLE BOX POCKET SUB-ASSEMBLY

*3

FRONT CONSOLE UPPER PANEL GARNISH

*4

LOWER INSTRUMENT PANEL FINISH PANEL LH

*5

LOWER INSTRUMENT PANEL FINISH PANEL RH

-

-

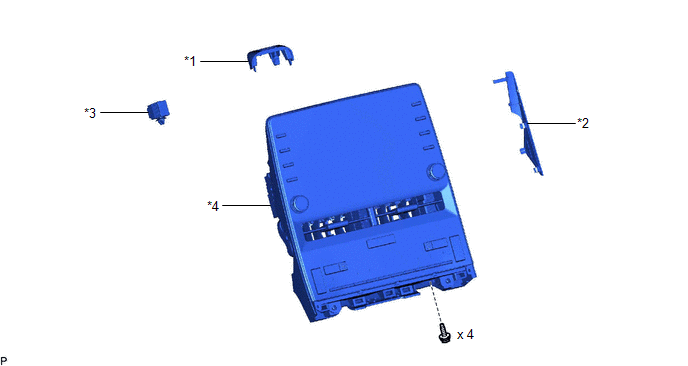

ILLUSTRATION

*1

CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

*2

CENTER NO. 2 INSTRUMENT CLUSTER FINISH PANEL

*3

NO. 1 CLEARANCE WARNING BUZZER

*4

RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET
    Clearance Warning Buzzer(for Front)

    Installation
