REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during clearance warning ECU assembly removal/installation are shown below. Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing. Click here
![]()
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing. Click here
![]() PROCEDURE 1. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY Click here

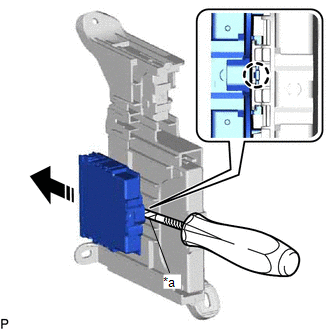

2. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY Click here 3. REMOVE ECU INTEGRATION BOX RH Click here 4. REMOVE CLEARANCE WARNING ECU ASSEMBLY (a) Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the clearance warning ECU assembly as shown in the illustration. ![]()
NOTICE:
|
