DESCRIPTION

DTC C1682 is stored if the parking assist ECU judges as a result of its self check that there is a problem with the current supplied from the front television camera assembly connected to the parking assist ECU.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

DTC Output from

C1682

Front Camera Current Malfunction

Open or short in the front television camera signal circuit
  • Harness or connector
  • Front television camera assembly
  • Parking assist ECU

Parking assist ECU

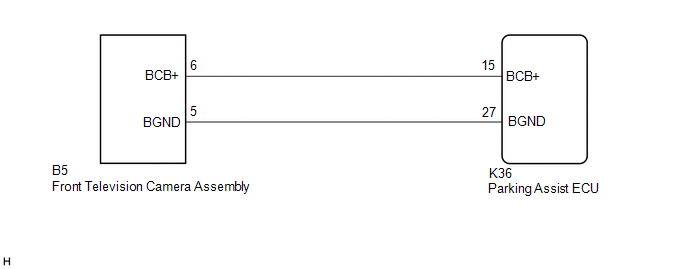

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • When "!" is displayed on the radio and display receiver assembly after the cable is disconnected from the negative (-) battery terminal, correct the steering angle neutral point.

    Click here

  • Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the panoramic view monitor system may be needed.

    Click here

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - FRONT TELEVISION CAMERA ASSEMBLY)

(a) Disconnect the K36 parking assist ECU connector.

(b) Disconnect the B5 front television camera assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

K36-15 (BCB+) - B5-6 (BCB+)

Always

Below 1 Ω

K36-27 (BGND) - B5-5 (BGND)

Always

Below 1 Ω

K36-15 (BCB+) or B5-6 (BCB+) - Body ground

Always

10 kΩ or higher

K36-27 (BGND) or B5-5 (BGND) - Body ground

Always

10 kΩ or higher
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

2.

CHECK PARKING ASSIST ECU (BCB+, BGND)

(a) Remove the parking assist ECU with the connector still connected.

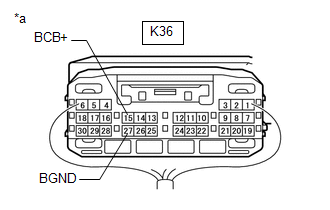

*a

Component with harness connected

(Parking Assist ECU)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

K36-27 (BGND) - Body ground

Always

Below 1 Ω

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

K36-15 (BCB+) - K36-27 (BGND)

Engine switch on (ACC)

5.5 to 7.05 V
OK

REPLACE FRONT TELEVISION CAMERA ASSEMBLY

NG

REPLACE PARKING ASSIST ECU

    Front Camera Feedback Malfunction (C1681)

    Side Camera Feedback Malfunction (C1683)
