DESCRIPTION DTC C1622 is
stored if the parking assist ECU judges as a result of its self check
that the signals or signal lines between the parking assist ECU and the
television camera assembly are not normal. |
DTC No. | Detection Item |
DTC Detection Condition | Trouble Area |
DTC Output from | |
C1622 | Open or Short Circuit in Back Camera Signal |
Open or short in the rear television camera signal circuit |
- Harness or connector
- Television camera assembly
- Parking assist ECU

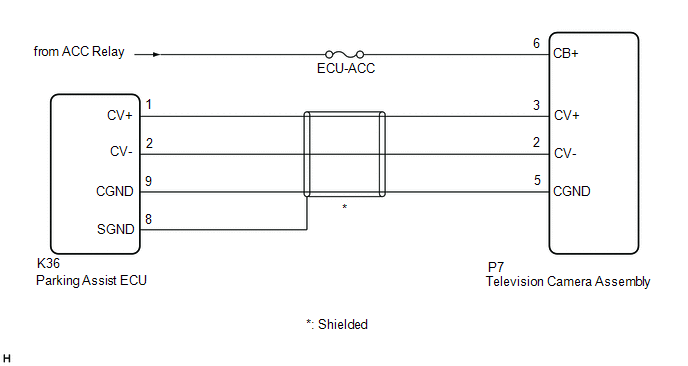

| Parking assist ECU | WIRING DIAGRAM
 CAUTION / NOTICE / HINT
NOTICE:
- Inspect the fuses for circuits related to this system before performing the following procedure.
- When "!" is displayed on the radio and display receiver assembly after
the cable is disconnected from the negative (-) auxiliary battery
terminal, correct the steering angle neutral point.
Click here
- Depending on the parts that are replaced or operations that are
performed during vehicle inspection or maintenance, calibration of other
systems as well as the panoramic view monitor system may be needed.
Click here
PROCEDURE |
1. | CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - TELEVISION CAMERA ASSEMBLY) |
(a) Disconnect the K36 parking assist ECU connector. (b) Disconnect the P7 television camera assembly connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance: |
Tester Connection | Condition |
Specified Condition | |
K36-1 (CV+) - P7-3 (CV+) |
Always | Below 1 Ω | |
K36-2 (CV-) - P7-2 (CV-) |
Always | Below 1 Ω | |
K36-9 (CGND) - P7-5 (CGND) |
Always | Below 1 Ω | |
K36-8 (SGND) - Body ground |
Always | 10 kΩ or higher | |
K36-1 (CV+) or P7-3 (CV+) - Body ground |
Always | 10 kΩ or higher | |
K36-2 (CV-) or P7-2 (CV-) - Body ground |
Always | 10 kΩ or higher | |
K36-9 (CGND) or P7-5 (CGND) - Body ground |
Always | 10 kΩ or higher |
| NG |
 | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
OK |
 | |
| 2. |
CHECK HARNESS AND CONNECTOR (ACC POWER SUPPLY - GROUND) |
(a) Measure the voltage according to the value(s) in the table below. Standard Voltage: |
Tester Connection | Condition |
Specified Condition | |
P7-6 (CB+) - Body ground |
power switch on (ACC) |
11 to 14 V |
| NG |
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
OK | |
| |
| 3. |
CHECK PARKING ASSIST ECU (CV-, CGND) | (a) Disconnect the K36 parking assist ECU connector.
| (b) Measure the resistance according to the value(s) in the table below.
Standard Resistance: |
Tester Connection | Condition |
Specified Condition | |
2 (CV-) - Body ground |
Always | Below 1 Ω | |
9 (CGND) - Body ground |
Always | Below 1 Ω | |
 |
|

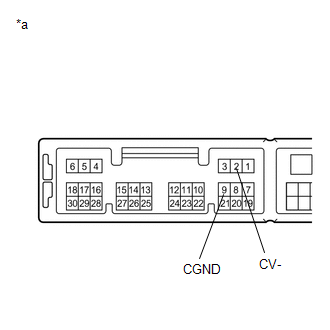

*a | Component without harness connected
(Parking Assist ECU) | | |
| NG |
| REPLACE PARKING ASSIST ECU |
|
OK | |
| |
| 4. |
CHECK TELEVISION CAMERA ASSEMBLY (CV+, CGND) |
(a) Remove the parking assist ECU with the connector still connected. (b) Using an oscilloscope, check the waveform of the television camera assembly.
HINT: A
waterproof connector is used for the television camera assembly.
Therefore, inspect the waveform at the parking assist ECU with the
connector connected.
|
*a | Component with harness connected
(Parking Assist ECU) | *b |

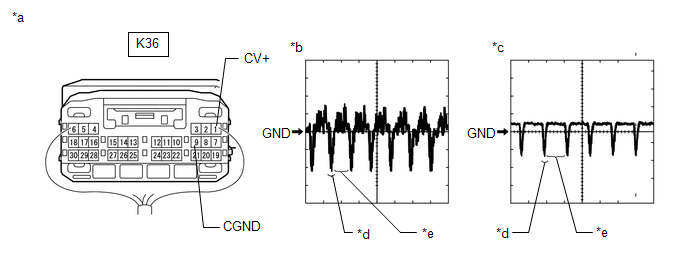

Waveform 1 (camera lens not covered, displaying an image) | |
*c | Waveform 2 (camera lens covered, blacking out the screen) |
*d | Synchronization Signal | |
*e | Video Waveform |
- | - |
HINT:
- The video waveform changes according to the image sent by the television camera assembly.
- The video waveform is constantly output when the power switch is on (ACC).
Measurement Condition |
Item | Content | |
Terminal No. (Symbol) |
K36-1 (CV+) - K36-9 (CGND) | |
Tool Setting | 200 mV/DIV., 50 μsec./DIV. | |
Condition | Power switch on (IG), panoramic view monitor system operating |
OK: Waveform is similar to that shown in the illustration.
| OK |
| REPLACE PARKING ASSIST ECU |
| NG |
| REPLACE TELEVISION CAMERA ASSEMBLY | |
