PARTS LOCATION

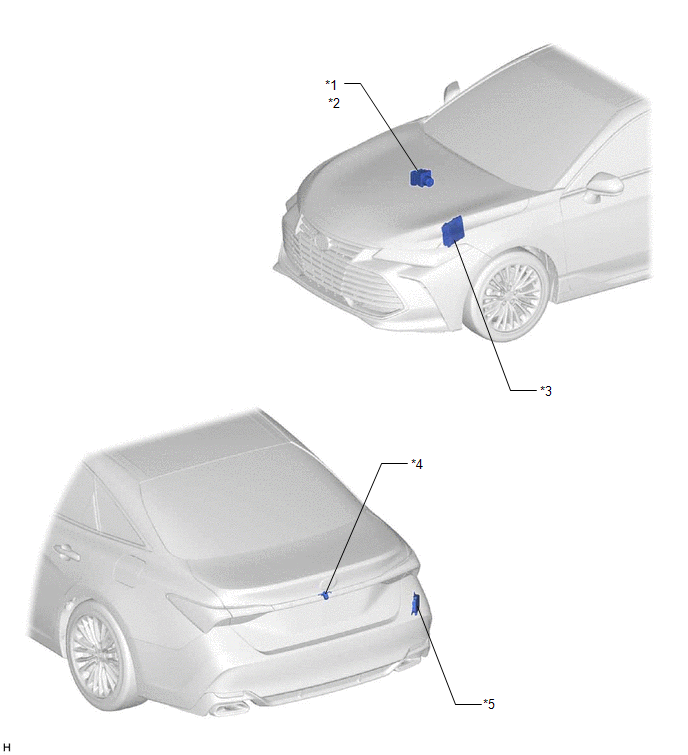

ILLUSTRATION

*1

BRAKE ACTUATOR ASSEMBLY

*2

- SKID CONTROL ECU

*3

ECM

*4

TELEVISION CAMERA ASSEMBLY

*5

BLIND SPOT MONITOR SENSOR RH

-

-

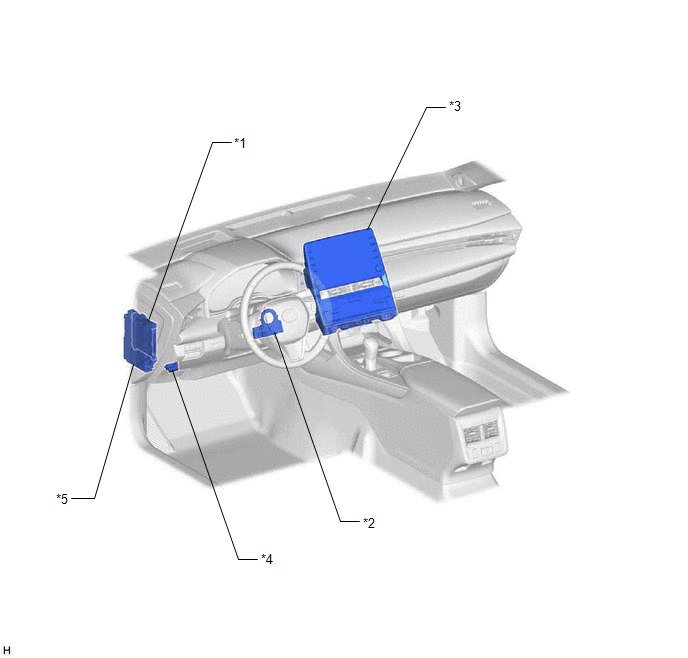

ILLUSTRATION

*1

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*2

STEERING SENSOR

*3

RADIO AND DISPLAY RECEIVER ASSEMBLY

*4

DLC3

*5

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-IG1 NO. 2 FUSE

- ECU-DCC NO. 1 FUSE

- ECU-ACC FUSE

- BKUP LP RELAY

- IG1-NO. 1 RELAY

-

-
