Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Television Camera(for Front)

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual / Audio, Visual, Telematics / Park Assist / Monitoring / Television Camera(for Front)

Components

COMPONENTS

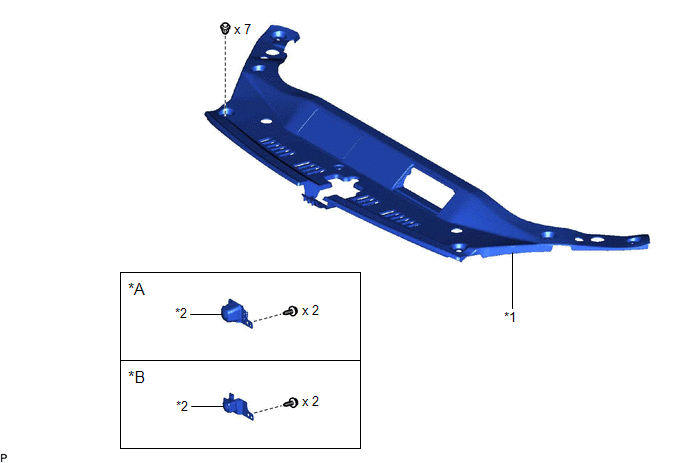

ILLUSTRATION

*A

for Bar Type Radiator Grille

*B

for Mesh Type Radiator Grille

*1

COOL AIR INTAKE DUCT SEAL

*2

FRONT TELEVISION CAMERA ASSEMBLY

Installation

INSTALLATION

PROCEDURE

1. INSTALL FRONT TELEVISION CAMERA ASSEMBLY

(a) Engage the 2 guides.

(b) Install the front television camera assembly with the 2 screws.

(c) Connect the connector.

2. INSTALL COOL AIR INTAKE DUCT SEAL

Click here

3. PERFORM CALIBRATION

for Gasoline Model: Click here

for HV Model: Click here

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front television camera assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

Front television camera assembly

Front television camera view adjustment

Panoramic View Monitor System

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

Front television camera assembly

Front television camera view adjustment

Panoramic View Monitor System

PROCEDURE

1. REMOVE COOL AIR INTAKE DUCT SEAL

Click here

2. REMOVE FRONT TELEVISION CAMERA ASSEMBLY

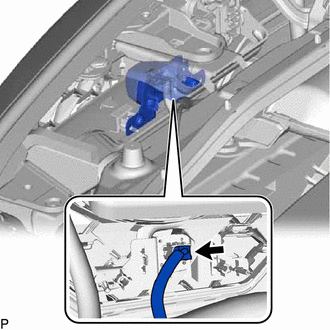

(a) Disconnect the connector.

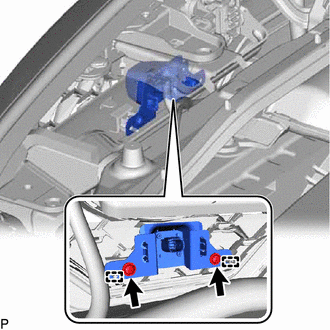

(b) Remove the 2 screws.

(c) Disengage the 2 guides to remove the front television camera assembly.

    Removal

    Television Camera(for Rear)
