Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Front Disc Brake Pad

Components

COMPONENTS

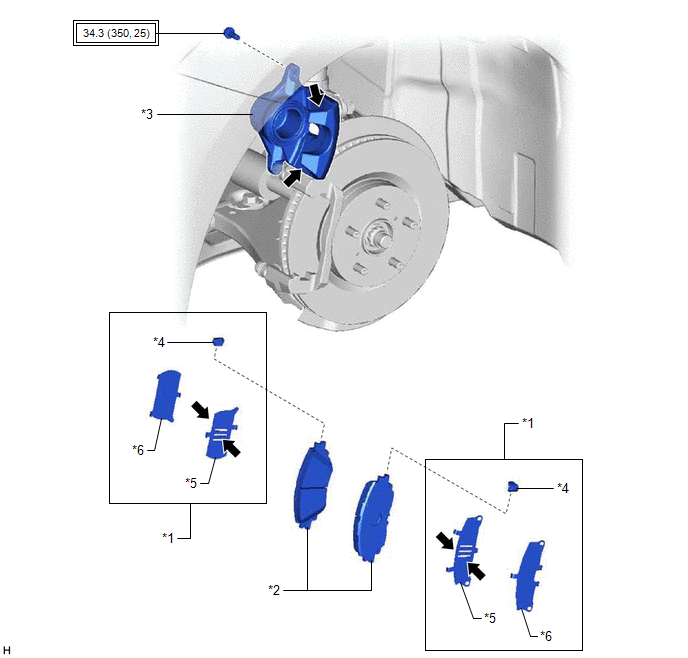

ILLUSTRATION

*1	FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT	*2	FRONT DISC BRAKE PAD
*3	FRONT DISC BRAKE CYLINDER ASSEMBLY	*4	FRONT DISC BRAKE PAD WEAR INDICATOR PLATE
*5	FRONT NO. 1 DISC BRAKE ANTI-SQUEAL SHIM	*6	FRONT NO. 2 DISC BRAKE ANTI-SQUEAL SHIM
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)		Disc brake grease

Installation

INSTALLATION

CAUTION / NOTICE / HINT

Click here

Removal

REMOVAL

CAUTION / NOTICE / HINT

Click here
