Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: IG1 Voltage Supply too High (C1417)

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual / Brake / Brake Control / Dynamic Control Systems / Electronically Controlled Brake System(for Gasoline Model) / IG1 Voltage Supply too High (C1417)

DESCRIPTION

If a malfunction is detected in the power supply circuit, the skid control ECU (brake actuator assembly) stores this DTC and the fail-safe function prohibits ABS operation.

This DTC is stored when the +BS terminal voltage deviates due to a malfunction in a power supply or charging system circuit such as the battery or alternator circuit, etc.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

C1417

IG1 Voltage Supply too High

+BS terminal voltage is more than 16.5 V for 1 second or more.
  • Battery
  • Charging system
  • Power source circuit
  • Internal power supply circuit of the skid control ECU (brake actuator assembly)

WIRING DIAGRAM

Refer to DTC C1241.

Click here

CAUTION / NOTICE / HINT

NOTICE:

  • When replacing the skid control ECU (brake actuator assembly), perform system variant learning and acceleration sensor zero point calibration.

    Click here

  • Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE

1.

CHECK BATTERY

(a) Check the battery voltage.

Standard Voltage:

Tester Connection

Condition

Specified Condition

Positive (+) terminal - Negative (-) terminal

Engine switch off

11 to 14 V
NG

CHECK OR REPLACE CHARGING SYSTEM COMPONENT OR BATTERY

OK

2.

CHECK HARNESS AND CONNECTOR (POWER SOURCE TERMINAL)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connector.

OK:

The connector is securely connected.

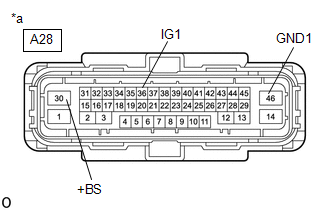

*a

Front view of wire harness connector

(to Skid Control ECU (Brake Actuator Assembly))

(b) Disconnect the A28 skid control ECU (brake actuator assembly) connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A28-30 (+BS) - Body ground

Always

11 to 14 V

A28-30 (+BS) - A28-46 (GND1)

Always

11 to 14 V

A28-36 (IG1) - Body ground

Engine switch on (IG)

11 to 14 V

A28-36 (IG1) - A28-46 (GND1)

Engine switch on (IG)

11 to 14 V
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
OK

3.

RECONFIRM DTC

(a) Turn the engine switch off.

(b) Reconnect the A28 skid control ECU (brake actuator assembly) connector.

(c) Clear the DTCs.

Chassis > ABS/VSC/TRAC/EPB > Clear DTCs

(d) Turn the engine switch off.

(e) Start the engine.

(f) Perform a road test.

(g) Check if the same DTC is output.

Chassis > ABS/VSC/TRAC/EPB > Trouble Codes

Result

Proceed to

C1417 is not output

A

C1417 is output

B
A

USE SIMULATION METHOD TO CHECK

B

REPLACE BRAKE ACTUATOR ASSEMBLY
