COMPONENTS

ILLUSTRATION

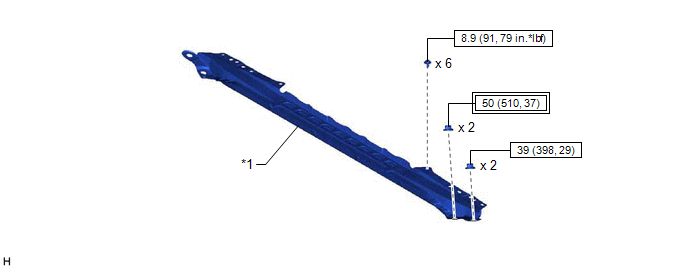

*1

FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

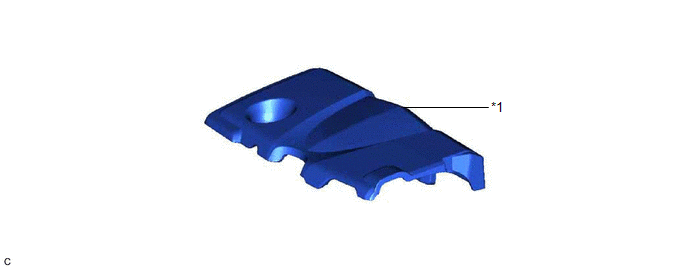

ILLUSTRATION

*1

NO. 1 ENGINE COVER SUB-ASSEMBLY

-

-

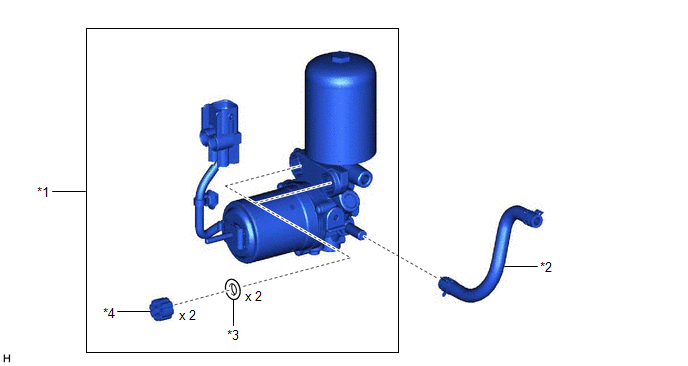

ILLUSTRATION

*1

ACCUMULATOR TO BRAKE MASTER CYLINDER TUBE

*2

BRAKE BOOSTER PUMP ASSEMBLY

*3

NO. 2 BRAKE ACTUATOR HOSE

*4

BRAKE ACTUATOR CASE COLLAR

*5

BRAKE BOOSTER PUMP BUSHING

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

*

For use with a union nut wrench

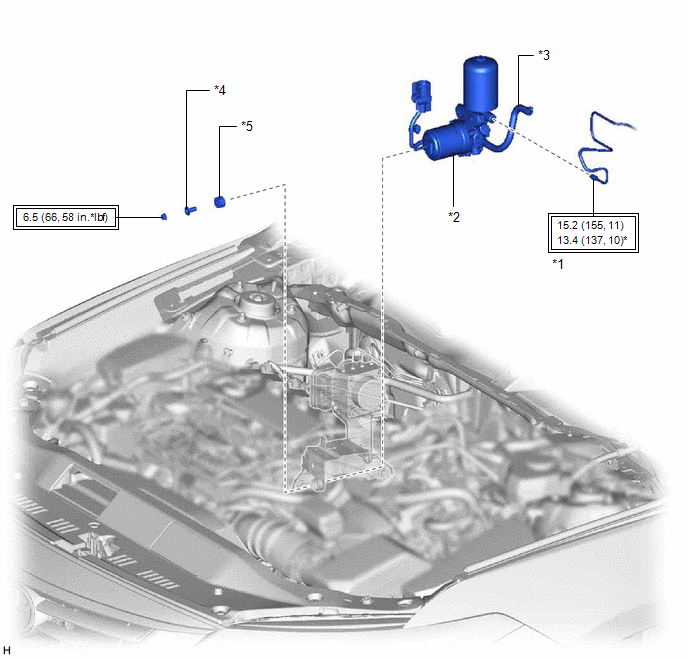

ILLUSTRATION

*1

BRAKE BOOSTER PUMP ASSEMBLY

*2

NO. 2 BRAKE ACTUATOR HOSE

*3

BRAKE BOOSTER PUMP COLLAR

*4

BRAKE BOOSTER PUMP BUSHING
    Brake Booster Pump(for Hv Model)

    Disposal
