DESCRIPTION When the power
switch is turned on (IG), power is supplied to the parking brake ECU
(brake actuator assembly). This DTC is stored if IG power source voltage
is not supplied to the parking brake ECU (brake actuator assembly) when
communication with other ECUs is established. |
DTC No. | Detection Item |
DTC Detection Condition | Trouble Area |
Memory | Note | |
C13A2 | Engine Switch/Power Switch Malfunction |
Both of following conditions are met:
- Power switch on (IG)
- When hybrid vehicle control ECU communicates with main body ECU
(multiplex network body ECU) via CAN communication, IG power supply
voltage is not received for approximately 15 seconds.
|
- Wire harness or connector
- IG power source circuit
- Parking brake ECU (brake actuator assembly)
| DTC stored |

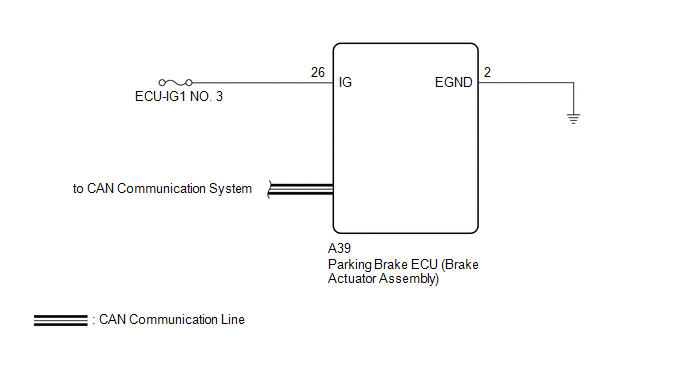

An electric parking brake system malfunction is displayed on the multi-information display. | WIRING DIAGRAM
 CAUTION / NOTICE / HINT
NOTICE:
- Inspect the fuses for circuits related to this system before performing the following procedure.
- The electric parking brake may still operate up to 20 seconds after the
power switch is turned off. Before disconnecting connectors or fuses,
turn the power switch off and wait 20 seconds or more.
- The parking brake indicator light blinks (red) when the power switch is
turned on (IG) after replacing the parking brake ECU (brake actuator
assembly). Operate the electric parking brake switch (electric parking
brake switch assembly) to turn off the parking brake indicator light
(red).
PROCEDURE |
1. | READ VALUE USING TECHSTREAM (IG SWITCH) |
(a) Turn the power switch off. (b) Connect the Techstream to the DLC3.
(c) Turn the power switch on (IG). (d) Turn the Techstream on. (e) Enter the following menus: Chassis / Electric Parking Brake / Data List.
(f) Read the Data List according to the display on the Techstream. Chassis > Electric Parking Brake > Data List
|
Tester Display | Measurement Item |
Range | Normal Condition |
Diagnostic Note | |
IG Switch | IG power source status |
OFF or ON | OFF: IG power source voltage is not input to skid control ECU (brake booster with master cylinder assembly)
ON: IG power source voltage is input to skid control ECU (brake booster with master cylinder assembly) |
- | Chassis > Electric Parking Brake > Data List
| NG |
 | GO TO STEP 3 |
|
OK |
 | |
(a) Clear the DTCs. Chassis > Electric Parking Brake > Clear DTCs
(b) Turn the power switch off. (c) Check for DTCs. Chassis > Electric Parking Brake > Trouble Codes
| Result |
Proceed to | | DTCs are output |
A | | DTCs are not output |
B |
| A |
| REPLACE PARKING BRAKE ECU (BRAKE ACTUATOR ASSEMBLY) |
| B |
| USE SIMULATION METHOD TO CHECK |
| 3. |
CHECK HARNESS AND CONNECTOR (PARKING BRAKE ECU (BRAKE ACTUATOR ASSEMBLY) - POWER SOURCE AND BODY GROUND) |
|

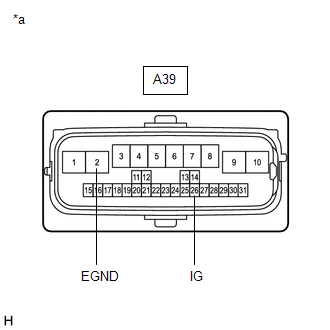

*a | Front view of wire harness connector
(to Parking Brake ECU (Brake Actuator Assembly)) |
(a) Disconnect the A39 parking brake ECU (brake actuator assembly) connectors.
(b) Turn the power switch on (IG). (c) Measure the voltage according to the value(s) in the table below.
Standard Voltage: |
Tester Connection | Condition |
Specified Condition | |
A39-26 (IG) - Body ground |
Power switch on (IG) |
8 to 16 V | (d) Turn the power switch off.
(e) Measure the resistance according to the value(s) in the table below.
Standard Resistance: |
Tester Connection | Condition |
Specified Condition | |
A39-2 (EGND) - Body ground |
Always | Below 1 Ω |
| OK |
| REPAIR IG POWER SOURCE CIRCUIT |
| NG |
| REPAIR OR REPLACE HARNESS OR CONNECTOR | |
