COMPONENTS

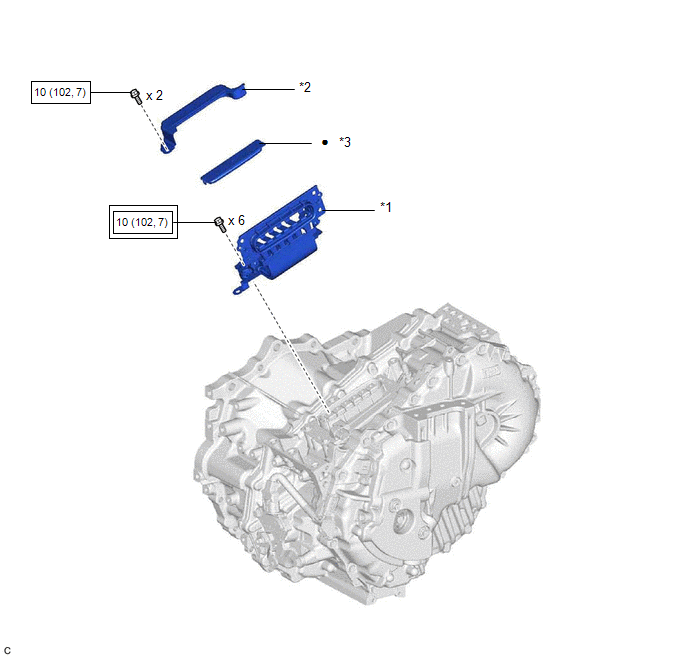

ILLUSTRATION

*1

MOTOR CABLE

*2

CONNECTOR COVER

*3

TERMINAL CAP

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

-

-
    Motor Cable

    Installation
