COMPONENTS

ILLUSTRATION

*1

COOL AIR INTAKE DUCT SEAL

*2

INLET AIR CLEANER ASSEMBLY

*3

NO. 1 ENGINE COVER SUB-ASSEMBLY

*4

AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

*5

FRONT LOWER NO. 1 FLOOR HEAT INSULATOR

*6

ENGINE ROOM MAIN WIRE

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

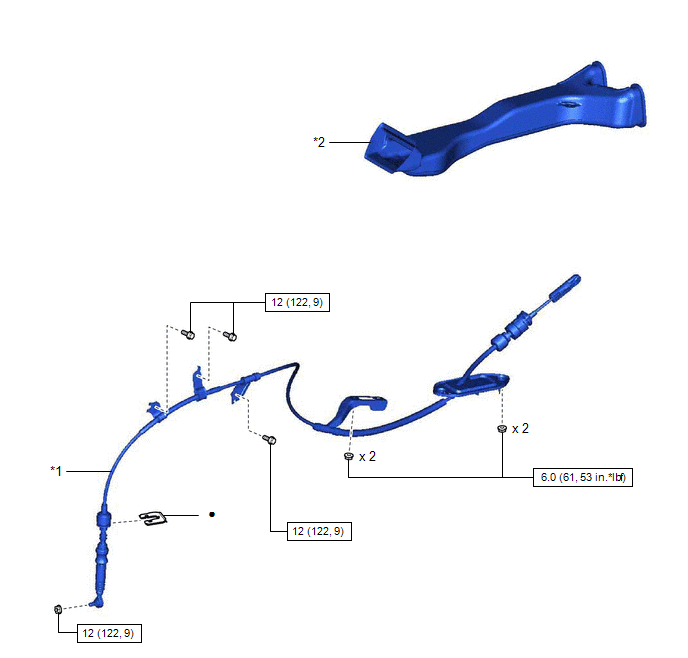

*1

TRANSMISSION CONTROL CABLE ASSEMBLY

*2

NO. 1 CONSOLE BOX DUCT

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
    Adjustment

    Installation
