Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY

(a) Connect the shift lock control ECU connector.

(b) Engage the clamp to connect the wire harness to the transmission floor shift assembly.

(c) Connect the transmission control switch connector.

(d) Engage the clamp to connect the wire harness to the transmission floor shift assembly.

(e) Install the clip to the No. 1 console box duct.

(f) Temporarily install the transmission floor shift assembly to the vehicle body with the 4 bolts.

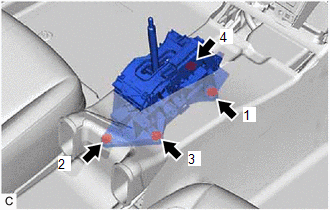

(g) Tighten the 4 bolts in the order shown in the illustration. Torque: 12 N·m {122 kgf·cm, 9 ft·lbf}

2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

NOTICE:

Before connecting the transmission control cable assembly, check that the shift lever is in N.

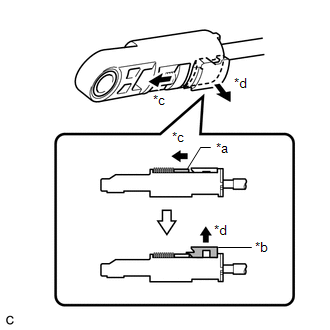

(a) Slide the slider of the transmission control cable assembly in the direction indicated by the arrow in the illustration and pull the lock piece outward.

*a Slider *b Lock Piece *c Slide *d Pull

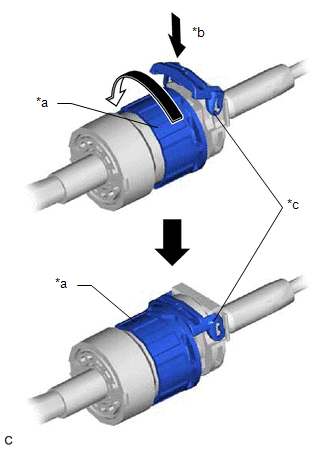

(b) Turn the lock nut of the transmission control cable assembly counterclockwise. While holding the lock nut, push in the stopper.

*a Lock Nut *b Push in *c Stopper

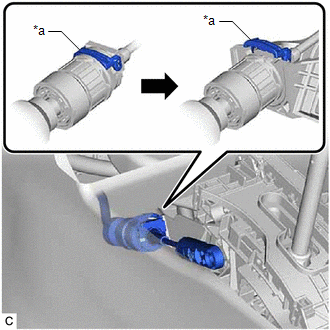

(c) Connect the transmission control cable assembly to the transmission floor shift assembly. NOTICE: After installation, check that the outer part of the stopper is as shown in the illustration.

*a Stopper

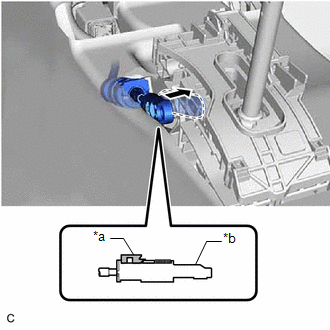

(d) Connect the transmission control cable assembly to the transmission floor shift assembly. NOTICE: Check that the lock piece is pulled out. Push the end of the transmission control cable assembly all the way to the base of the transmission floor shift assembly pin. Connect the transmission control cable assembly so that the lock piece faces the driver side.

*a Lock Piece *b Adjuster Case

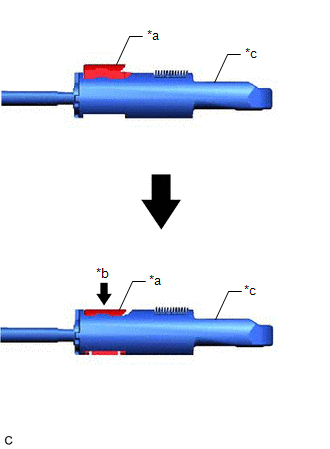

(e) Push the lock piece into the adjuster case. NOTICE: Check that the shift lever is in N. Securely push in the lock piece until the slider lock is engaged.

*a Lock Piece *b Push in *c Adjuster Case

(f) After adjusting the shift lever position, check the position and operation of the shift lever. If there is a problem, adjust the shift lever position again.

3. INSTALL CONSOLE BOX ASSEMBLY

Click here

4. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

Click here

5. INSTALL SHIFT LOCK RELEASE BUTTON COVER

(a) Engage the 2 claws to install the shift lock release button cover to the rear upper console panel sub-assembly.

6. INSPECT SHIFT LEVER POSITION

Click here

7. ADJUST SHIFT LEVER POSITION

Click here
