INSTALLATION

PROCEDURE

1. INSTALL ENGINE WATER PUMP ASSEMBLY

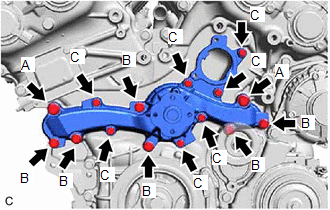

(a) Install a new water pump gasket and the engine water pump assembly with the 15 bolts.

Torque:

Bolt (A) :

43 N·m {438 kgf·cm, 32 ft·lbf}

Bolt (B) :

21 N·m {214 kgf·cm, 15 ft·lbf}

Bolt (C) :

11 N·m {112 kgf·cm, 8 ft·lbf}

Standard Length:

Item	Length
Bolt (A)	60 mm (2.36 in.)
Bolt (B)	55 mm (2.17 in.)
Bolt (C)	22 mm (0.866 in.)

NOTICE:

Make sure that there is no oil on the threads of the bolts (A) and (B).
Do not start the engine for at least 1 hour after installation.

2. INSTALL WATER PUMP PULLEY

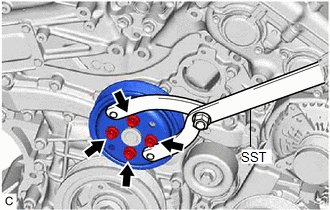

(a) Temporarily install the water pump pulley with the 4 bolts.

(b) Using SST, hold the water pump pulley.

SST: 09960-10010

09962-01000

09963-00700

Torque:

21 N·m {214 kgf·cm, 15 ft·lbf}

3. INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY

(a) Install the No. 2 idler pulley sub-assembly with the bolt.

Torque:

54 N·m {551 kgf·cm, 40 ft·lbf}

4. INSTALL V-RIBBED BELT

Click here

5. INSTALL WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

Click here
