COMPONENTS

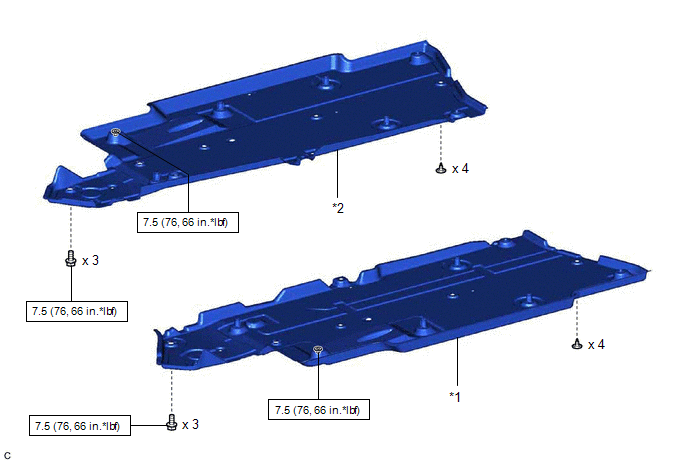

ILLUSTRATION

*1	FRONT FLOOR COVER LH	*2	FRONT FLOOR COVER RH
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

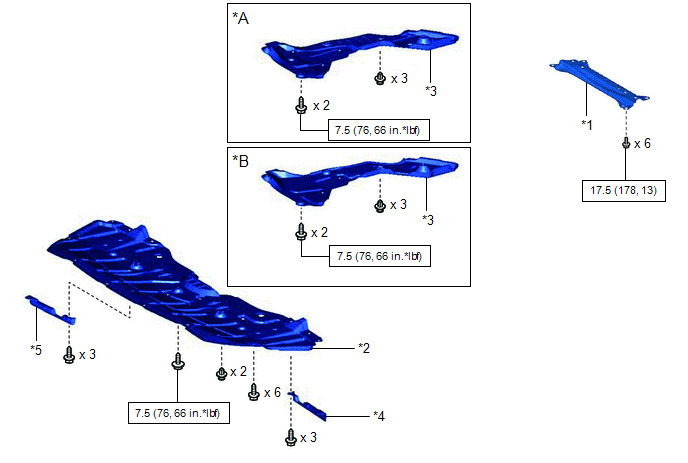

ILLUSTRATION

*A	Type A	*B	Type B
*1	BODY MOUNTING PLATE	*2	NO. 1 ENGINE UNDER COVER
*3	REAR ENGINE UNDER COVER RH	*4	FRONT WHEEL OPENING EXTENSION PAD LH
*5	FRONT WHEEL OPENING EXTENSION PAD RH	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

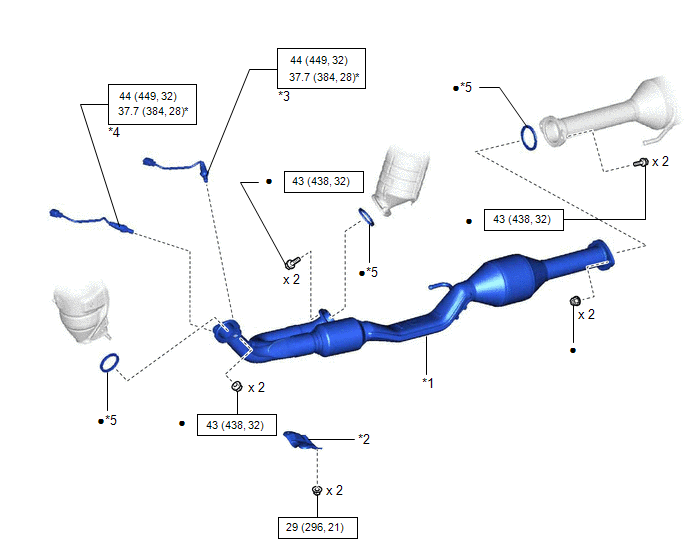

ILLUSTRATION

*1	FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)	*2	NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side)
*3	HEATED OXYGEN SENSOR (for Bank 2)	*4	HEATED OXYGEN SENSOR (for Bank 1)
*5	GASKET	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	*	For use with SST
●	Non-reusable part	-	-
