INSPECTION

PROCEDURE

1. INSPECT HEATED OXYGEN SENSOR (for Bank 1)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 (HT1B) - 2 (+B)

20°C (68°F)

5 to 10 Ω

1 (HT1B) - 4 (E2)

Always

10 kΩ or higher

If the result is not as specified, replace the heated oxygen sensor.

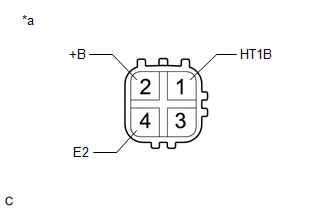

*a

Component without harness connected

(Heated Oxygen Sensor)

2. INSPECT HEATED OXYGEN SENSOR (for Bank 2)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 (HT2B) - 2 (+B)

20°C (68°F)

5 to 10 Ω

1 (HT2B) - 4 (E2)

Always

10 kΩ or higher

If the result is not as specified, replace the heated oxygen sensor.

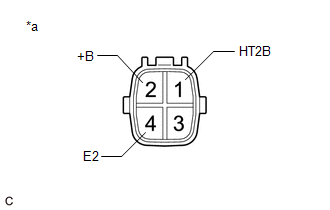

*a

Component without harness connected

(Heated Oxygen Sensor)
