COMPONENTS

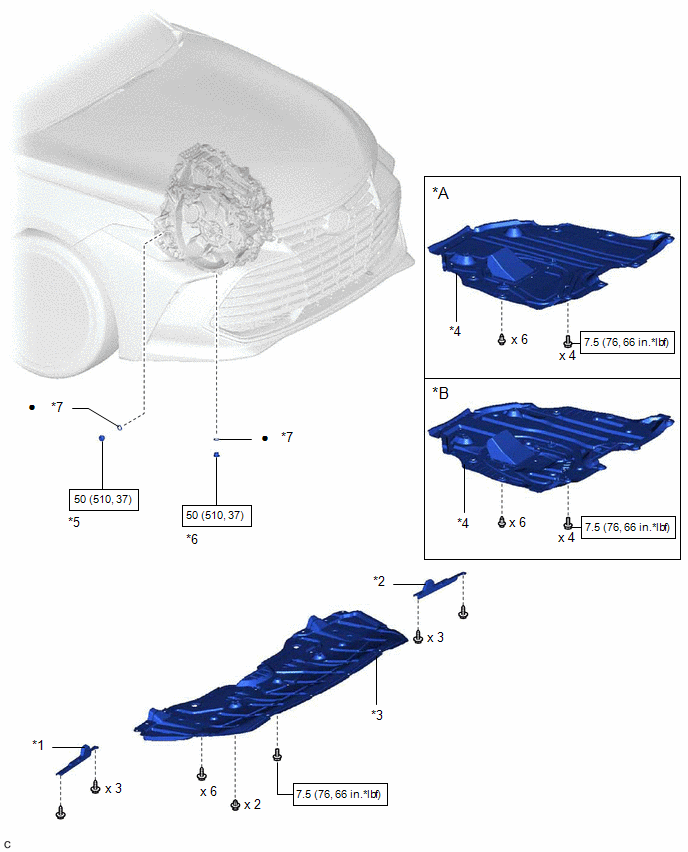

ILLUSTRATION

*A

Type A

*B

Type B

*1

FRONT WHEEL OPENING EXTENSION PAD RH

*2

FRONT WHEEL OPENING EXTENSION PAD LH

*3

NO. 1 ENGINE UNDER COVER

*4

NO. 2 ENGINE UNDER COVER ASSEMBLY

*5

FILLER PLUG

*6

DRAIN PLUG

*7

GASKET

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
    Hybrid Transaxle Fluid

    Replacement
