REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during driving support ECU assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function When Necessary Procedures are not Performed
*: When performing learning using the Techstream. Click here
Disconnect cable from negative (-) battery terminal	Perform steering sensor zero point calibration	Lane Departure Alert System (w/ Steering Control)
		Pre-collision System
		Intelligent Clearance Sonar System*
		Lighting System (for Gasoline Model with Cornering Light)
	Memorize steering angle neutral point	Parking Assist Monitor System
	Memorize steering angle neutral point	Panoramic View Monitor System

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function When Necessary Procedures are not Performed
*: When performing learning using the Techstream. Click here
Disconnect cable from negative (-) auxiliary battery terminal	Perform steering sensor zero point calibration	Lane Departure Alert System (w/ Steering Control)
		Pre-collision System
		Intelligent Clearance Sonar System*
		Lighting System (for HV Model with Cornering Light)
	Memorize steering angle neutral point	Parking Assist Monitor System
	Memorize steering angle neutral point	Panoramic View Monitor System

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

for Gasoline Model: Click here

for HV Model: Click here

PROCEDURE

1. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

Click here

2. REMOVE DRIVING SUPPORT ECU ASSEMBLY

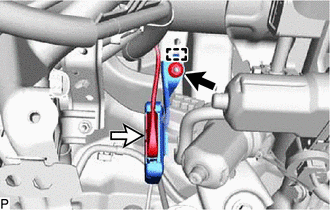

(a) Remove the nut.

	Nut
	Connector

(b) Disengage the guide.

NOTICE:

Do not reuse the driving support ECU assembly if it has been dropped or subjected to a severe impact.
