Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

NOTICE:

  • Do not damage the millimeter wave radar sensor assembly.
  • If the millimeter wave radar sensor bracket sub-assembly has been removed/installed, be sure to perform adjustment.

PROCEDURE

1. INSTALL MILLIMETER WAVE RADAR SENSOR BRACKET SUB-ASSEMBLY

(a) Temporarily install the millimeter wave radar sensor bracket sub-assembly with the 2 screws.

(b) Tighten the 2 screws to install the millimeter wave radar sensor bracket sub-assembly.

HINT:

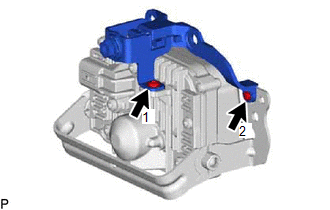

Tighten the screws in the order shown in the illustration.

    Installation

    Removal
