REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are replaced during millimeter wave radar sensor assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

Millimeter wave radar sensor assembly

Adjust millimeter wave radar sensor assembly
  • Dynamic Radar Cruise Control System
  • Front Camera System
  • Lane Departure Alert System (w/ Steering Control)
  • Pre-collision System
  • Lighting System (EXT)

PROCEDURE

1. REMOVE COOL AIR INTAKE DUCT SEAL

Click here

2. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

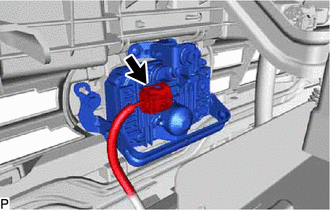

(a) Disconnect the connector.

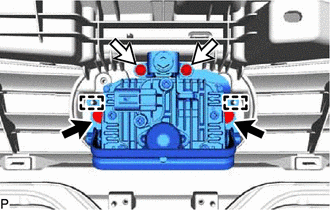

(b) Remove the 2 bolts and 2 screws.

Bolt

Screw

(c) Disengage the 2 guides and remove the millimeter wave radar sensor assembly.

NOTICE:

Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.

    Reassembly
