COMPONENTS

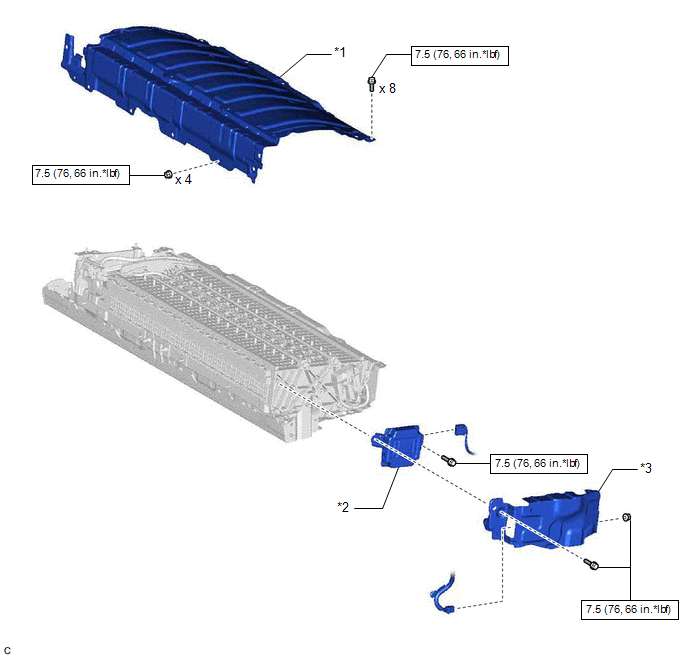

ILLUSTRATION

*1

UPPER HV BATTERY COVER SUB-ASSEMBLY

*2

BATTERY VOLTAGE SENSOR

*3

NO. 1 HV BATTERY SHIELD PANEL

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
    Battery Voltage Sensor
