COMPONENTS

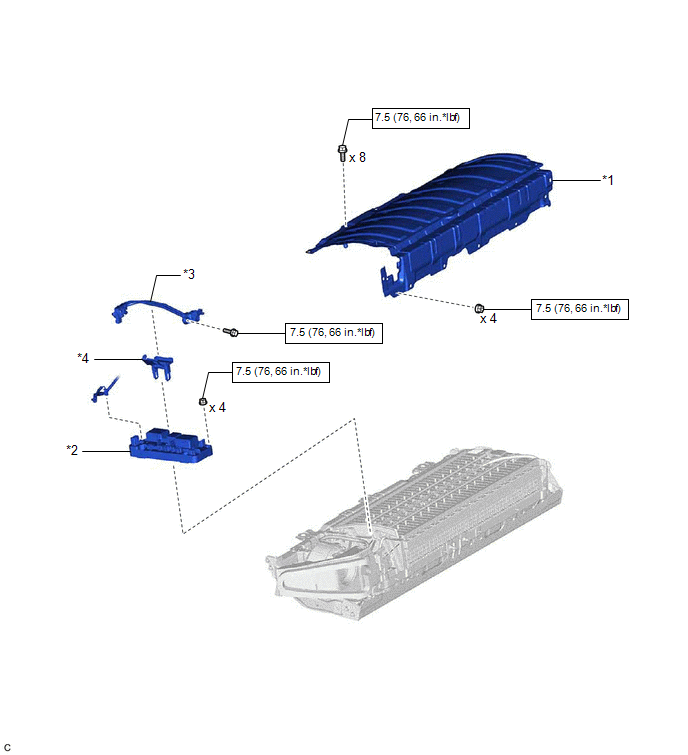

ILLUSTRATION

*1

UPPER HV BATTERY COVER SUB-ASSEMBLY

*2

HV BATTERY JUNCTION BLOCK ASSEMBLY

*3

ELECTRIC VEHICLE BATTERY PLUG ASSEMBLY

*4

WIRING HARNESS PROTECTOR

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

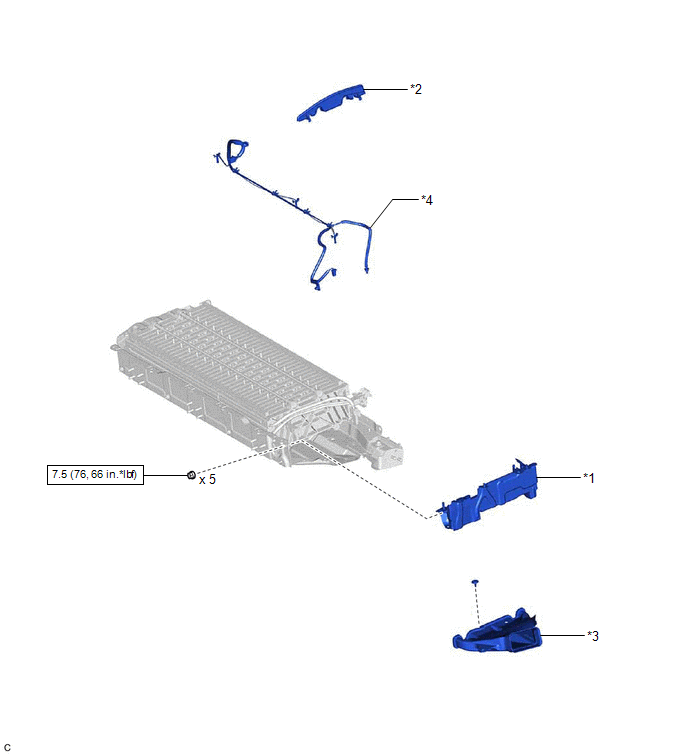

ILLUSTRATION

*1

NO. 2 HYBRID BATTERY SHIELD SUB-ASSEMBLY

*2

NO. 1 HYBRID BATTERY PACKING

*3

NO. 1 HV BATTERY INTAKE DUCT LH

*4

HYBRID BATTERY THERMISTOR

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
    Hv Battery Thermistor

    Installation
