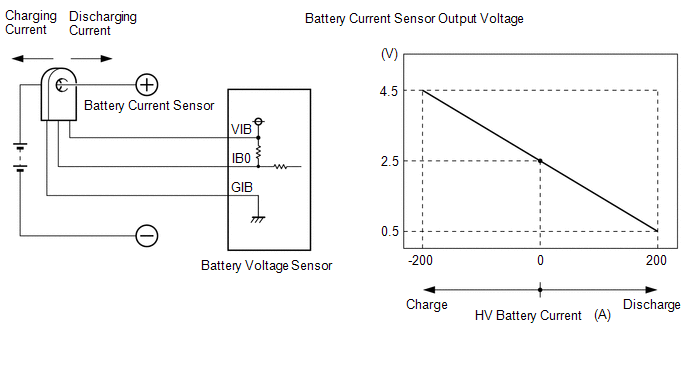

DESCRIPTION A battery
current sensor is installed to the positive (+) terminal side of the HV
battery and detects current flowing from the HV battery. The battery
current sensor outputs voltage, which changes between 0 and 5 V
according to the detected amperage, to the IB terminal of the battery
voltage sensor. The battery voltage sensor sends signals to the hybrid
vehicle control ECU. The hybrid vehicle control ECU determines the
charging and discharging amount of the HV battery based on the received
signals and calculates the SOC of the HV battery through the accumulated
amperage.  |
DTC No. | Detection Item |
DTC Detection Condition | Trouble Area |
MIL | Warning Indicate | |
P0ABF00 | Hybrid/EV Battery Current Sensor "A" Circuit Range/Performance |
Abnormal battery current sensor characteristics: (based on hybrid system consumption and HV battery output).
(1 trip detection logic) |
- HV battery junction block assembly
- Battery voltage sensor
| Comes on |
Master Warning Light: Comes on | Related Data List |
DTC No. | Data List | |
P0ABF00 | - | MONITOR DESCRIPTION
The
hybrid vehicle control ECU detects malfunctions of the battery current
sensor by monitoring motor and generator torque. If the hybrid vehicle
control ECU detects a battery current sensor malfunction, the hybrid
vehicle control ECU will illuminate the MIL and store a DTC. MONITOR STRATEGY |
Related DTCs | P0AC0 (INF P0ABF00): Current sensor malfunction (gain or offset) | |
Required sensors/components | Battery current sensor | |
Frequency of operation | Continuous | |
Duration | TMC's intellectual property | |
MIL operation | 1 driving cycle | |
Sequence of operation | None | TYPICAL ENABLING CONDITIONS |
The monitor will run whenever the following DTCs are not stored |
TMC's intellectual property | | Other conditions belong to TMC's intellectual property |
- | TYPICAL MALFUNCTION THRESHOLDS |
TMC's intellectual property | - | COMPONENT OPERATING RANGE |
Hybrid vehicle control ECU | DTC P0AC0 (INF P0ABF00) is not detected | CONFIRMATION DRIVING PATTERN
HINT:
- After repair has been completed, clear the DTC and then check that the
vehicle has returned to normal by performing the following All Readiness
check procedure.
Click here
- When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
Click here
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG) and turn the Techstream on.
- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
- Turn the power switch off and wait for 2 minutes or more.
- Turn the power switch on (IG) and turn the Techstream on.
- Drive the vehicle for approximately 10 minutes according to the freeze
frame data items "Vehicle Speed", "Accelerator Position", "Hybrid
Battery Current", "Motor Torque" and "Generator Torque". [*1]
HINT:
[*1] : Normal judgment procedure.
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
- Enter the following menus: Powertrain / Hybrid Control / Utility / All Readiness.
- Check the DTC judgment result.
HINT:
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or N/A, perform the normal judgment procedure again.
PROCEDURE |
1. | CHECK DTC OUTPUT (HYBRID CONTROL) |
(a) Connect the Techstream to the DLC3. (b) Turn the power switch on (IG).
(c) Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
(d) Check for DTCs. Powertrain > Hybrid Control > Trouble Codes
|
Result | Proceed to | |
One of the followings applies:
- Only P0ABF00 is output.
- One or more DTCs other than P0AFC00 and P0AFC96 are also output.
| A | |
P0AFC00 or P0AFC96 is also output. |
B | (e) Turn the power switch off.
(f) Disconnect the Techstream from the DLC3.
| B |
 | GO TO DTC CHART (HYBRID CONTROL SYSTEM) |
|
A |
 | |
| 2. |
CHECK HARNESS AND CONNECTOR (BATTERY VOLTAGE SENSOR - HV BATTERY JUNCTION BLOCK ASSEMBLY) |
Click here
| NG |
| REPLACE HYBRID BATTERY THERMISTOR |
|
OK | |
| |
| 3. |
REPLACE HV BATTERY JUNCTION BLOCK ASSEMBLY |
Click here
|
NEXT | |
| |
Click here
|
NEXT | |
| |
(a)
Drive the vehicle for approximately 10 minutes according to the freeze
frame data items "Vehicle Speed", "Accelerator Position", "Hybrid
Battery Current", "Motor Torque" and "Generated Torque". CAUTION: When performing the confirmation driving pattern, obey all speed limits and traffic laws.
|
NEXT | |
| |
| 6. |
CHECK DTC OUTPUT (HYBRID CONTROL) | (a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG). (c) Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
(d) Check for DTCs. Powertrain > Hybrid Control > Trouble Codes
|
Result | Proceed to | |
P0ABF00 is not output. |
A | | P0ABF00 is output again. |
B | (e) Turn the power switch off.
| A |
| END |
| B |
| REPLACE BATTERY VOLTAGE SENSOR | |
